PVC Steel Wire Hose





The pvc steel wire hose have normal standard and food grade . The normal standard steel wire hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering  and transparent. The food grade steel wire hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods.





Alias: Thunder Hose, PVC Spring Hose, PVC steel suction hoses, steel Spiral Reinforced PVC Suction Hoses, watersuction hoses with steel wire, PVC Suction and discharge hoses,steel-reinforced PVC hoses.

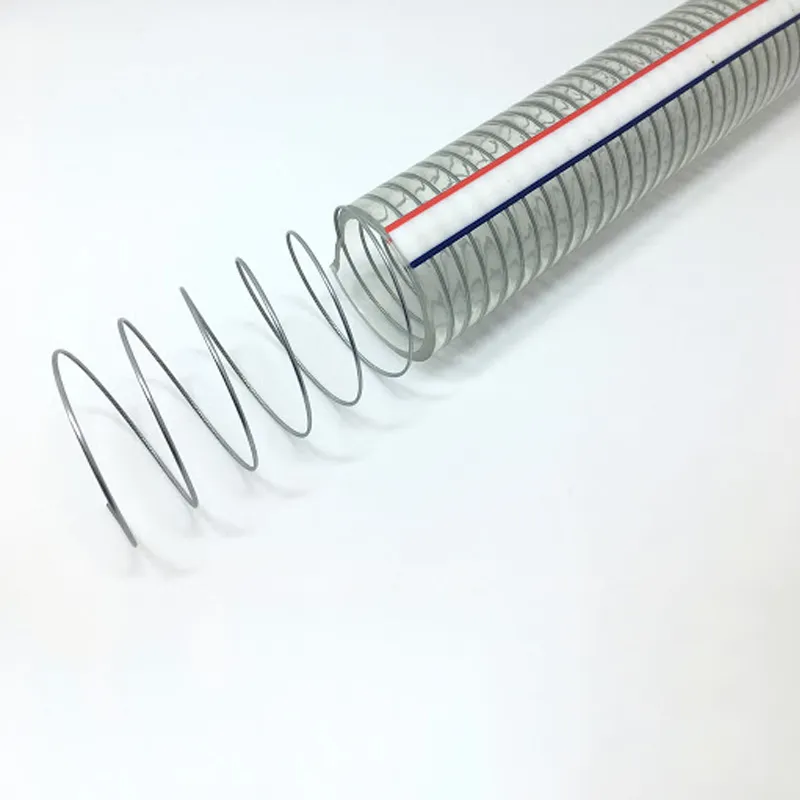

This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure. With colorful symbol lines on the surface of the hose, it can be beautiful.





Steel Wire Reinforced PVc Hose has a wire reinforcement incorporated within the wall and a clear miror-smoothsurface that provides visual fow and reduces materia, buildup, Kink and crush resistant, Lightweight vet tough andabrasion-resistant. This type of hose is often used in industries such as agriculture, construction, mining, andmanufacturing. lt is suitable for a range of applications, including water suction and discharge,irrigation, dewateringand pumping of liguids and slurries. The steel wire reinforcement enables the hose to handle demanding tasks andprovides resistance to crushing, impact, and external pressures.



Temperature Range: -10℃ ~70℃







Product Ref	Nominal dimension	Size		Length	W.P.	B.P.	Weight	Volume
	lnch	I.D x O.D
		mm	mm	m	bar	bar	kg/roll	m3
PSWH-06	1/4"	6	11	100	-1~11	33	11.5	0.028
PSWH-08	5/16"	8	14	100	-1~11	33	15	0.039
PSWH-10	3/8"	9	14±0.2	100	-1~10	30	15	0.027
		10	15±0.2	100	-1~10	30	16	0.041
		9	15	100	-1~11	33	18	0.029
		10	16	100	-1~11	33	20	0.045
PSWH-12	1/2"	12	17±0.2	100	-1~9	30	17	0.044
		12	18	100	-1~10	30	22	0.049
PSWH-16	5/8"	15	22	100	-1~10	30	31	0.074
		15	21±0.2	100	-1~9	30	26	0.074
		16	20±0.2	100	-1~8	20	18	0.061
		16	23±0.2	100	-1~9	30	32	0.063
PSWH-20	3/4"	19	26	50	-1~10	30	18	0.052
		19	25.5±0.2	50	-1~8	20	15	0.05
		20	26±0.2	50	-1~8	20	16	0.05
		20	24.5±0.2	50	-1~8	20	13	0.05
PSWH-22	7/8"	22	30±0.2	50	-1~8	20	25	0.065
		22	27±0.2	50	-1~8	20	15	0.058
PSWH-25	1"	25	33	50	-1~10	25	27	0.085
		25	29±0.2	50	-1~7	20	11	0.065
		25	30±0.2	50	-1~7	20	18	0.069
		25	32±0.2	50	-1~7	20	25	0.078
PSWH-32	1-1/4"	32	41	40	-1~7	20	31	0.106
		32	36±0.2	50	-1~5	19	20	0.124
		32	38.6±0.2	50	-1~5	19	30	0.133
		32	41±0.2	50	-1~6	20	40	0.152
		32	41.6±0.2	50	-1~6	20	45	0.13
PSWH-38	1-1/2"	38	48	40	-1~6	18	42	0.154
		38	42.8±0.2	50	-1~5	16	25	0.154
		38	44±0.2	50	-1~5	16	30	0.161
		38	44.6±0.2	50	-1~5	16	35	0.169
		38	45.5±0.2	50	-1~6	18	40	0.173
		38	46.4±0.2	50	-1~6	18	45	0.184
PSWH-45	1-3/4"	45	56	40	-1~6	17	52	0.19
		45	50±0.2	50	-1~5	16	30	0.198
		45	52±0.2	50	-1~5	16	40	0.211
		45	53±0.2	50	-1~5	16	50	0.229
PSWH-48	1-7/8"	48	59	40	-1~5	16	56	0.208
		48	54.6±0.2	50	-1~5	15	40	0.234
		48	56.4±0.2	50	-1~5	15	60	0.262
		48	58±0.2	50	-1~5	15	70	0.267
PSWH-50	2"	50	62	40	-1~5	16	64	0.276
		50	55.6±0.2	50	-1~5	10	40	0.258
		50	57.2±0.2	50	-1~5	14	50	0.268
		50	58.2±0.2	50	-1~5	14	60	0.273
		50	60±0.2	50	-1~5	15	70	0.289
PSWH-58	2-5/46"	58	70	40	-1~5	15	80	0.35
PSWH-64	2-1/2"	63	80	30	-1~5	14	84	0.33
		64	72.3±0.2	40	-1~4	10	60	0.351
		64	75±0.2	40	-1~4	10	80	0.37
		64	76±0.2	40	-1~4	10	94	0.37
		64	77±0.2	40	-1~4	10	100	0.389
PSWH-75	3"	75	91	30	-1~5	13	105	0.436
		75	84±0.2	40	-1~4	10	72	0.504
		75	85±0.2	40	-1~4	10	80	0.504
		75	87±0.2	40	-1~4	10	100	0.681
		75	89±0.2	40	-1~4	10	120	0.715
PSWH-90	3-1/2"	90	108	20	-1~4	12	90	0.64
PSWH-100	4"	100	118	20	-1~3	10	96	0.505
		102	112±0.2	30	-1~3	10	90	0.667
		102	114±0.2	30	-1~3	10	105	0.676
		102	115±0.2	30	-1~3	10	120	0.706
		102	118±0.2	30	-1~3	10	144	0.716
PSWH-110	4-3/8"	110	123	20	-1~3	10	80	0.81
PSWH-117	4-5/8"	117	133	20	-1~3	10	110	1.024
PSWH-127	5"	127	143	20	-1~3	10	120	1.243
PSWH-140	5-1/2"	140	156	10	-1~3	10	65	0.627
PSWH-152	6"	152	170	10	-1~3	10	90	0.765
PSWH-160	6-5/16"	160	176	10	-1~3	10	85	0.922
PSWH-180	7"	180	196	10	-1~3	10	85	1.156
PSWH-200	8"	200	224	10	-1~3	10	120	1.426
