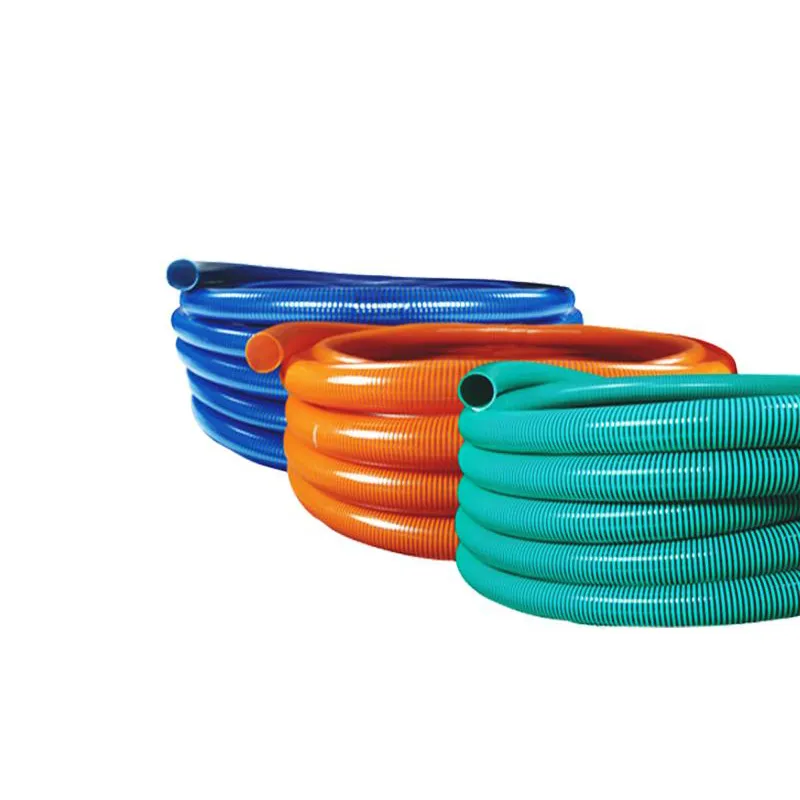

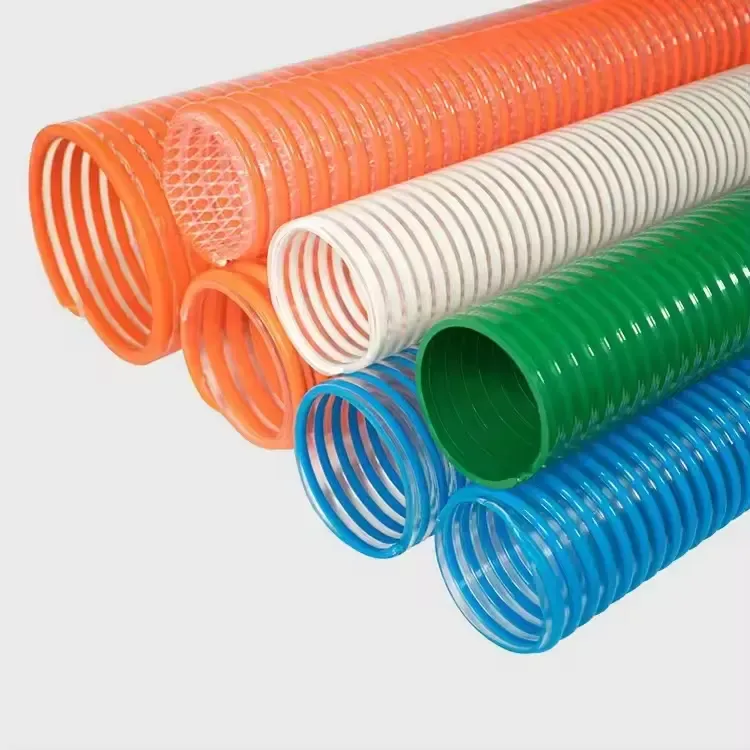

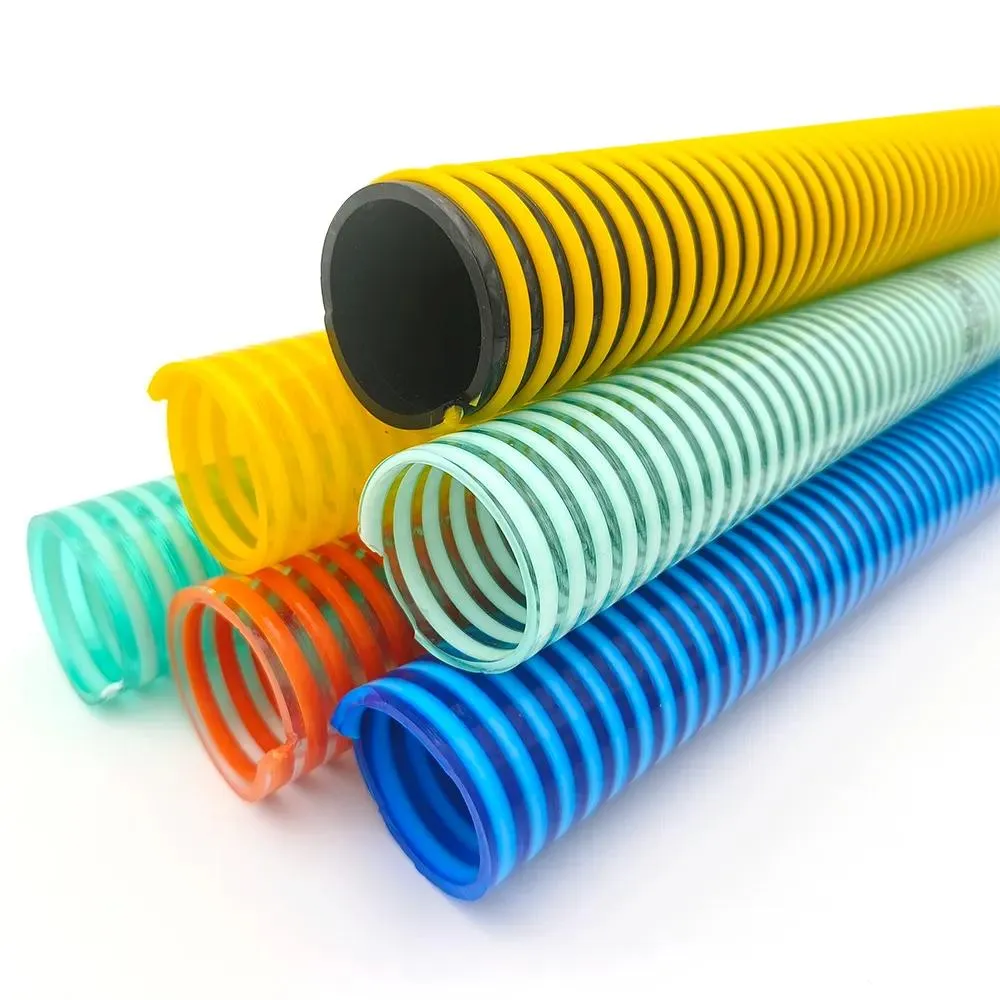

PVC Suction Hose

Product Details Introduction

PVC suction hose is designed for suction and discharge of liquid fertilizers and granular materials. The hose is reinforced with spiral PVC reinforcement. Its surface is smooth, so it is easy to clamp. The transparent hose allows for full visual flow monitoring. The PVC suction hose is a hose designed for suction applications, used to extract or suck fluids, liquids or materials. It is commonly used in industries such as agriculture, construction, mining and manufacturing. This hose is used for a wide range of suction applications, including water, mud, slurry, debris and other liquids or materials, it is commonly used for tasks such as irrigation, dewatering, drainage and liquid transfer in various industries.

Alias: PVC suction hoses, Spiral Reinforced PVc Suction Hoses, water suction hoses with helix, PVc Suction and discharge hoses, PVC grit hoses.

Wall: High quality plasticized PVC.

Reinforcement: Rigid PVc helix.

Cover: Flexible plasticized PVC-Smooth & Corrugated

Applications Of PVC Suction Hose

Very ideally for conveying water, oil, and powder, abrasive mineral sands, gravel, cement, chips, shavings, construction, agriculture and industrial service applications.

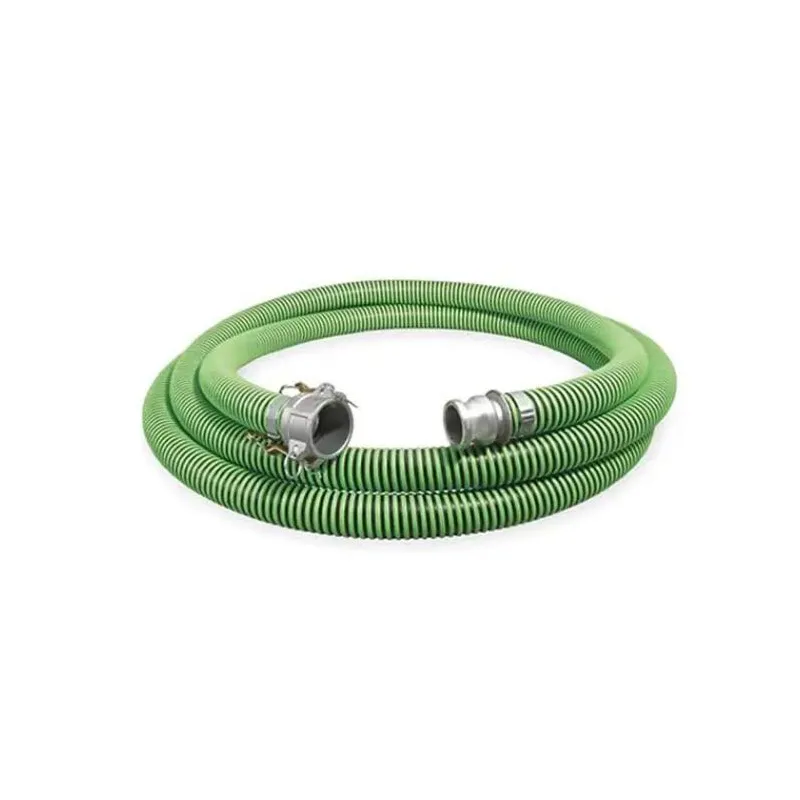

Coupling: Camlock coupling and clamps are available seperately or assembly with hose.

Temperature range: -10℃ to +65℃( 14℉ to 150℉)

Feature

Anti-abrasion,anti-corrosion,anti-aging

Super flexible,small bending radius,light weight

Smooth tube and excellent water supply and draining efficiency

High abrasion resistance and easy to transfer power

Coupling:

Camlock coupling and clamps are available separately or assembly with hose

Product Parameters

Main Performance Parameters Of PVC Suction Hose

Item code	Inner Diameter		O.D.	THICKNESS	Max Length	30m/Roll Packing dimension
Item code	inch	mm	mm	mm	m	D*H (m)
PS1923	3/4"	19	23	2	50	0.6*0.28
PS1925	3/4"	19	25	3	50	0.6*0.28
PS2529	1"	25	29	2	50	0.6*0.32
PS2531		25	31	3	50	0.6*0.32
PS2532		25	32	3.5	50	0.6*0.32
PS3236	1-1/4"	32	36	2	50	0.7*0.28
PS3238		32	38	3	50	0.7*0.28
PS3239		32	39	3.5	50	0.7*0.28
PS3240		32	40	4	50	0.7*0.32
PS3844	1-1/2"	38	44	3	50	0.7*0.32
PS3845		38	45	3.5	50	0.7*0.32
PS3846		38	46	4	50	0.7*0.32
PS3847		38	47	4.5	50	0.7*0.32
PS3848		38	48	5	50	0.7*0.32
PS5054	2"	50	54	2	50	1.0*0.18
PS5056		50	56	3	50	1.0*0.18
PS5057		50	57	3.5	50	1.0*0.18
PS5058		50	58	4	50	1.0*0.18
PS5059		50	59	4.5	50	1.0*0.18
PS5060		50	60	5	50	1.0*0.18
PS6369	2.5"	63	69	3	50	1.1*0.22
PS6370		63	70	3.5	50	1.1*0.22
PS6371		63	71	4	50	1.1*0.22
PS6372		63	72	4.5	50	1.1*0.22
PS6373		63	73	5	50	1.1*0.22
PS7581	3"	75	81	3	50	1.3*0.25
PS7582		75	82	3.5	50	1.3*0.25
PS7583		75	83	4	50	1.3*0.25
PS7584		75	84	4.5	50	1.3*0.25
PS7585		75	85	5	50	1.3*0.25
PS7586		75	86	5.5	50	1.3*0.25
PS7587		75	87	6	50	1.3*0.25
PS100108	4"	100	108	4	50	2.0*0.22
PS100109		100	109	4.5	50	2.0*0.22
PS100110		100	110	5	50	2.0*0.22
PS100111		100	111	5.5	50	2.0*0.22
PS100112		100	112	6	50	2.0*0.22
PS100114		100	114	7	50	2.0*0.22
PS100116		100	116	8	50	2.0*0.22
PS125135	5"	125	135	5	30	2.0*0.22
PS125137		125	137	6	30	2.0*0.22
PS125139		125	139	7	30	2.0*0.22
PS125141		125	141	8	30	2.0*0.22
PS150164	6"	150	164	7	30	2.3*0.35
PS150166		150	166	8	30	2.3*0.35
PS150168		150	168	9	30	2.3*0.35
PS150170		150	170	10	30	2.3*0.35
PS150174		150	174	12	30	2.3*0.35
PS150169		150	169	9.5	30	2.3*0.35
PS200214	8"	200	214	7	12
PS200216		200	216	8	12
PS200222		200	222	11	12
PS254270	10"	254	270	8	12
PS254274	10"	254	274	10	12
PS305321	12"	305	321	8	12
PS305325		305	325	10	12
PS305329		305	329	12	12
PS355375	14"	355	375	10	12
PS355379	14"	355	379	12	12

PVC suction hose for sale, designed for agriculture, industry, and construction needs.
