Extruded from a high strength silicone rubber compound with bore sizes from 2mm ID up to 38mm, meets the demands of practically any application.We can offer a wide selection of silicone materials for use. There are industrial grade, platinum-cured and food grade.

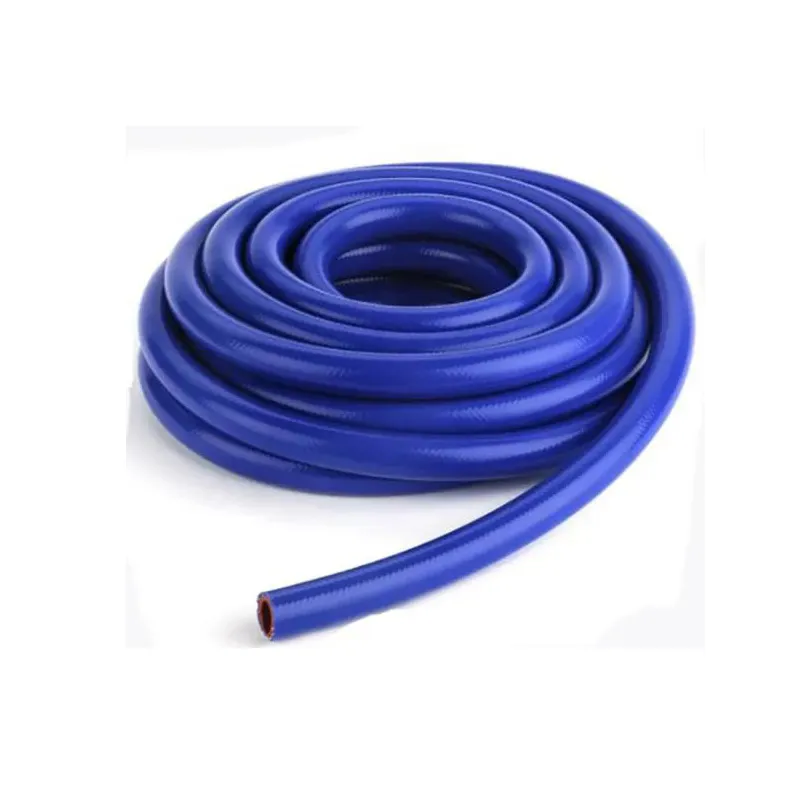

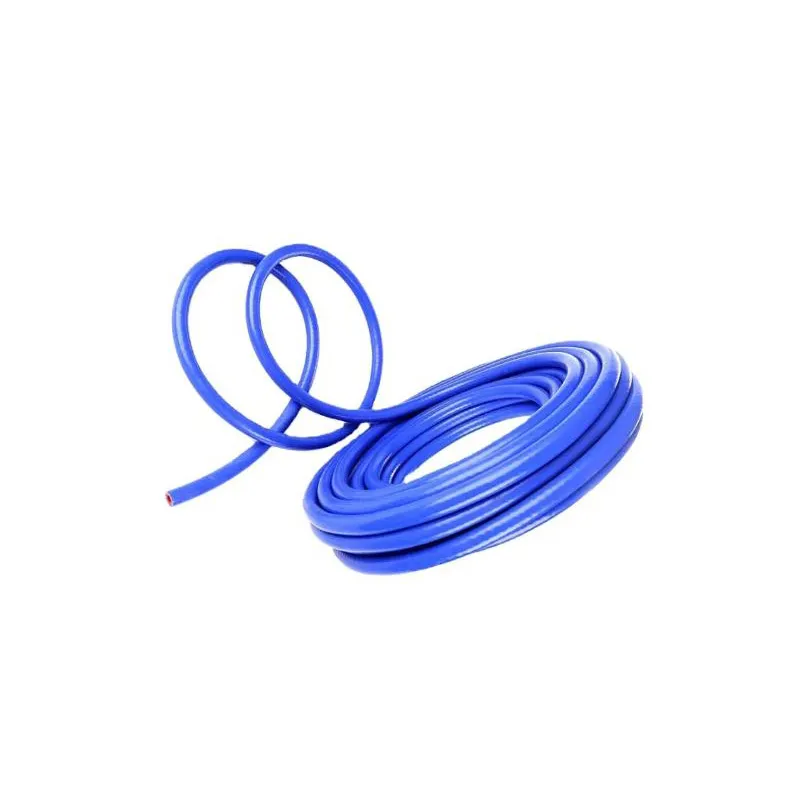

Product name: Fiber reinforced extrude silicone hose
Material construction: Extrude silicone hose with one layer fiber reinforcement
OEM/ODM material available:OEM/ODM material is available
Working temperature: -50℃~250℃
Pressure rate:~15~5Bar by sizes
Application:Fiber reinforced extrude silicone hose is used for food or beverage conveying, dairy products, cosmetics, food processing,etc.
OEM procedure: need customer offer: sample or drawing
Color available: red, blue, black, yellow, pink, purple, green, brown, orange, red+blue, red+black, pattern etc.
| Item Code | ID | Wall | Ply | |
| mm | Inch | mm | ||
| SH-1 | 8 | 5/16 | 3.5-4.5 | 1-2 |
| SH-2 | 10 | 3/8 | 3.5-4.5 | 1-2 |
| SH-3 | 12 | 1/2 | 3.5-4.5 | 1-2 |
| SH-4 | 14 | 9/16 | 3.5-4.5 | 1-2 |
| SH-5 | 16 | 5/8 | 3.5-4.5 | 1-2 |
| SH-6 | 19 | 3/4 | 3.5-4.5 | 1-2 |
| SH-7 | 22 | 7/8 | 3.5-4.5 | 1-2 |
| SH-8 | 25 | 1 | 3.5-4.5 | 1-2 |
| SH-9 | 28 | 1 1/8 | 3.5-4.5 | 1-2 |
| SH-10 | 32 | 1 1/4 | 3.5-4.5 | 1-2 |
The silicone material itself has high elasticity, and the hose can be easily bent and twisted without breaking or deformation, which makes it very convenient in the installation and use process, and can adapt to a variety of complex pipeline layout and space requirements. At the same time, its elasticity also helps to absorb shock and shock, reducing wear and damage caused by mechanical vibration.
Good chemical stability
It has good tolerance to most chemical substances and is not easy to be corroded by acids, alkalis, salts, organic solvents, etc. In some cases involving the transport of chemical substances, such as chemical, pharmaceutical and other industries, Our silicone hose can work stably, not easy to chemical reactions and affect its performance and service life.
It can maintain good performance over a wide temperature range, and can generally withstand temperatures from -50 ° C to 200 ° C, and some special formulations can even be used under more extreme temperature conditions, which makes it suitable for a variety of different working environments.
Silicone is a non-toxic, odorless material, in line with food hygiene and medical safety standards will not cause pollution to the material transported.
Different colors can be customized according to customer requirements, which plays an important role in some specific scenes.
The precise pipe diameter, wall thickness and length can be customized according to the specific needs of the use.
