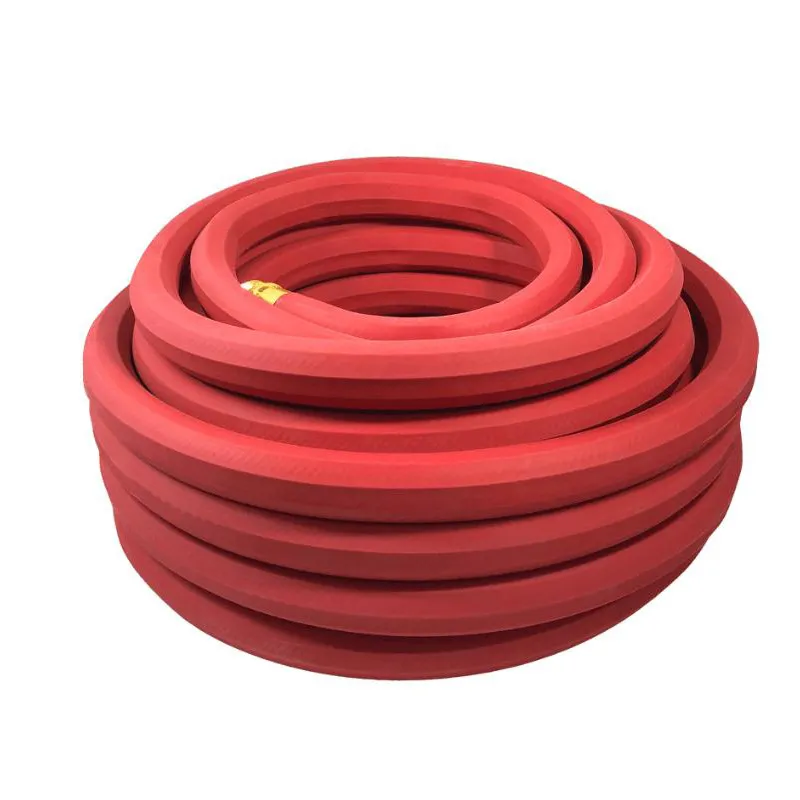

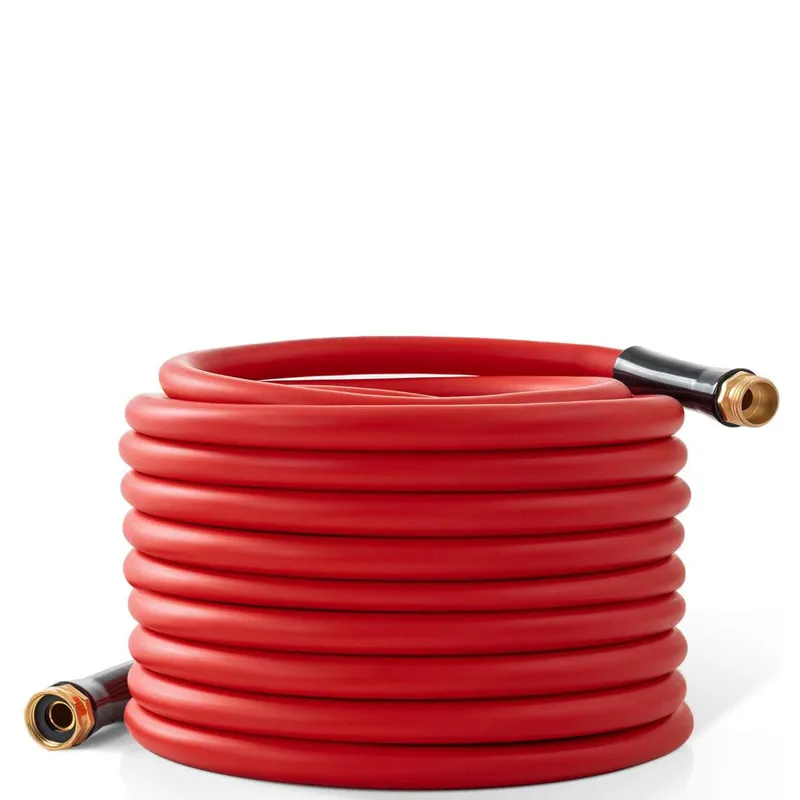

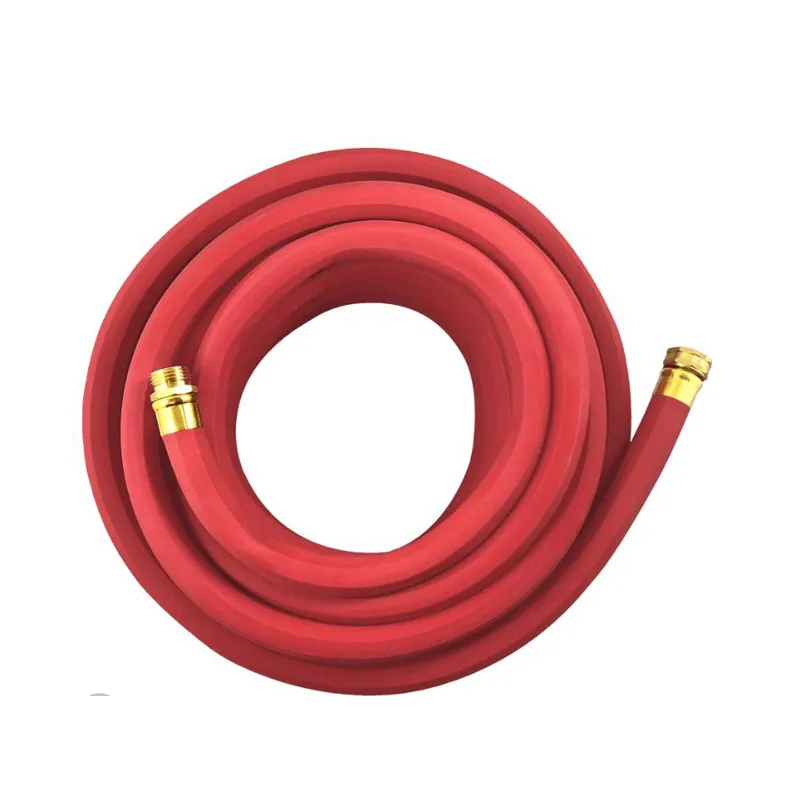

Hot Water Hose

Application:

Hot water hose is suitable for the conveyance of high temperature water for automobile,cleaning and cooling applications.The rugged construction of the Industrial hoses makes them suitable for all sorts of steam transfer operations in places like chemical plants,refineried,shipyards and other demanding industrial environments.

Send email to us > Download

Application

Features

1.Tube:Black,EPDM compound synthetic rubber
2. Reinforcement:High tensile textile cord with helical steel wire
3. Cover:Black,wrapped finish,EPDM rubber, weather and abrasion resistant
Working temperature range: -20℃ to 150℃
Safety factor: 3:1
Reference Standard: GB 118692

30% lighter than traditional contractor rubber watering hoses
Kink resistant design allows for uninterrupted watering and easy coiling once your job is complete
3-ply durable construction features premium nitrile rubber tubing, coated with a reinforced polyester interlayer and then sealed with another layer of premium nitrile rubber
3/4" male and female brass crush proof fittings and hose bend restrictors to reduce bending stress near the hose coupling junction
100 PSI working pressure, 500 PSI burst pressure
For year-round use in all weather conditions
Flexibility to -40° F (-40° C). Hot Water Rated to 180°F (80° C)

Specification

item code	I.D.		O.D.		Work		Burst		Bending		Weight		Max.Length
	I.D.		O.D.		Pressure		Pressure		Radius		Weight		Max.Length
	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	lbs/ft	kg/m	ft	m
HWH06	1/4"	6	0.55	14	225	15	675	45	2	50	0.1	0.15	328	100
HWH08	5/16"	8	0.63	16	225	15	675	45	3.5	90	0.11	0.17	328	100
HWH10	3/8"	10	0.7	17	225	15	675	45	5.1	130	0.17	0.25	328	100
HWH19	3/4"	19	1.1	29	225	15	675	45	9.4	240	0.4	0.6	328	100
HWH22	7/8"	22	1.34	34	225	15	675	45	11	280	0.46	0.68	328	100
HWH25	1"	25	1.4	35	225	15	675	45	14.8	375	0.63	0.93	328	100
HWH32	1-1/4"	32	1.7	42	225	15	675	45	16.5	420	0.84	1.25	196	60
HWH38	1-1/2"	38	2.1	53	150	10	450	30	19.7	500	0.99	1.47	196	60
HWH45	1-3/4"	45	2.36	60	150	10	450	30	24.8	630	1.18	1.76	196	60
HWH51	2"	51	2.56	65	150	10	450	30	24.8	630	1.29	1.92	196	60
HWH57	2-1/4"	57	2.92	74	150	10	450	30	33.7	855	1.42	2.11	196	60
HWH64	2-1/2"	64	3.23	82	150	10	450	30	37.8	960	1.72	2.56	196	60
HWH76	3"	76	3.7	94	150	10	450	30	44.9	1140	1.99	2.96	196	60
HWH90	3-1/2"	90	4.25	108	150	10	450	30	53.1	1350	2.47	3.68	196	60
HWH102	4"	102	4.8	122	150	10	450	30	60.2	1530	2.84	4.22	196	60

Advantage

Durable EPDM Synthetic Rubber Construction: Made from high-quality EPDM synthetic rubber, this hose boasts excellent durability and resistance to extreme temperatures, chemicals, and abrasion.

Abrasion and corrosion resistant.

Reinforced for high burst resistance, the heavy-gauge rubber offers excellent abrasion and corrosion resistance in yards with rocks or sharp edges.

PROFESSIONAL WATER HOSE

The hose lining is resistant to temperature changes, hot water, and chemicals, with ozone- and UV-resistant covers.

REDUCES KINS AND TANKS

Reduces kinks and tangles to help you maintain control over long distances.

Crimp-resistant brass fittings.

Crush-resistant brass fittings prevent hose ends from becoming deformed when running or stepping on them.

Hot water hoses specifically designed to withstand hot water temperatures up to 200° Fahrenheit for use in washdown applications in kitchens and foodservice environments. Available in 25' or 50' lengths and 5/8" or 3/4" I.D., these rubber hoses can be used with insulated nozzles and heavy-duty hose rack for storage.

Heat-resistant rubber hot water hose for safe transport of high-temperature fluids.
