Applications
Applications of PVC Fibre Hose:

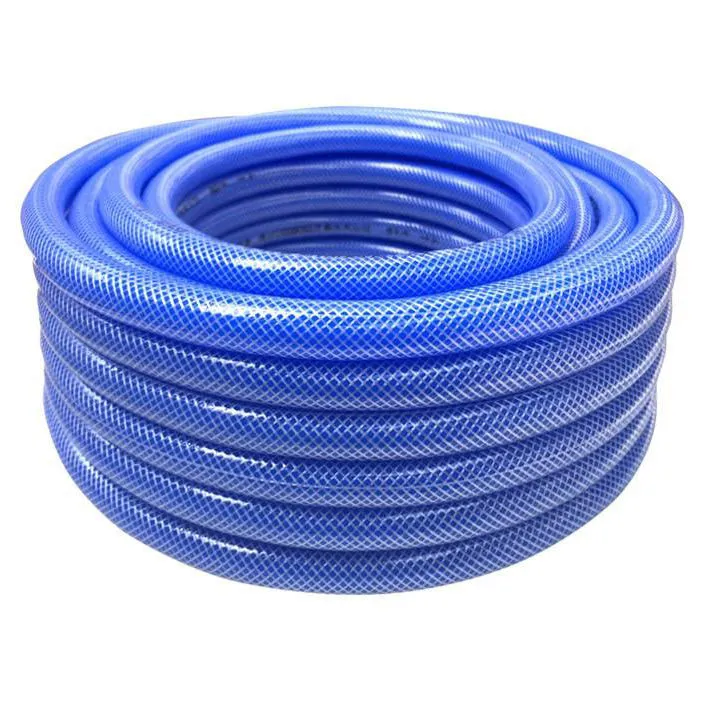

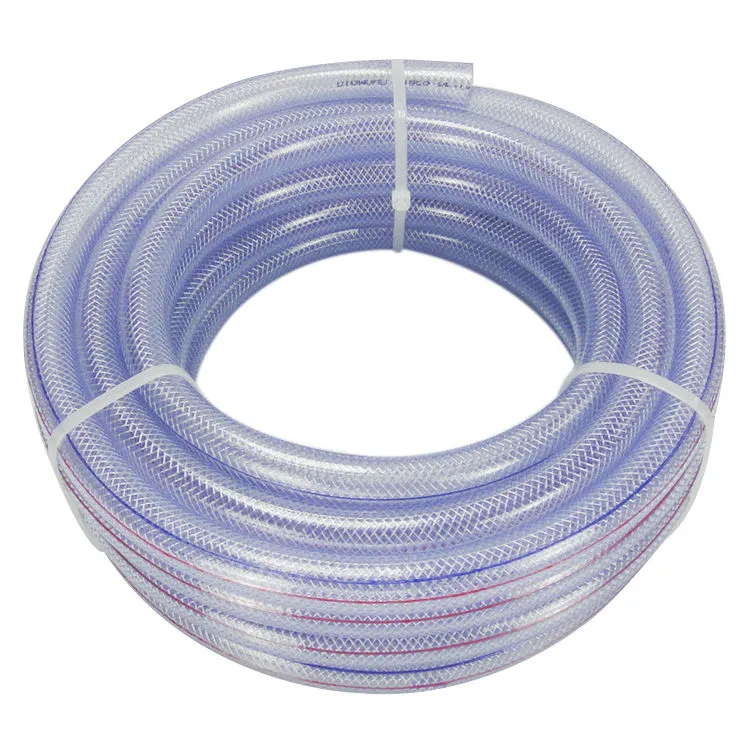

PVC Reinforced Hose is a flexible hose made from polyvinyl chloride (PVC) reinforced with a mesh of polyester yarn fiber, steel or other materials. It is commonly used in industrial applications such as air and water delivery, chemical transfer, and food and beverage processing.

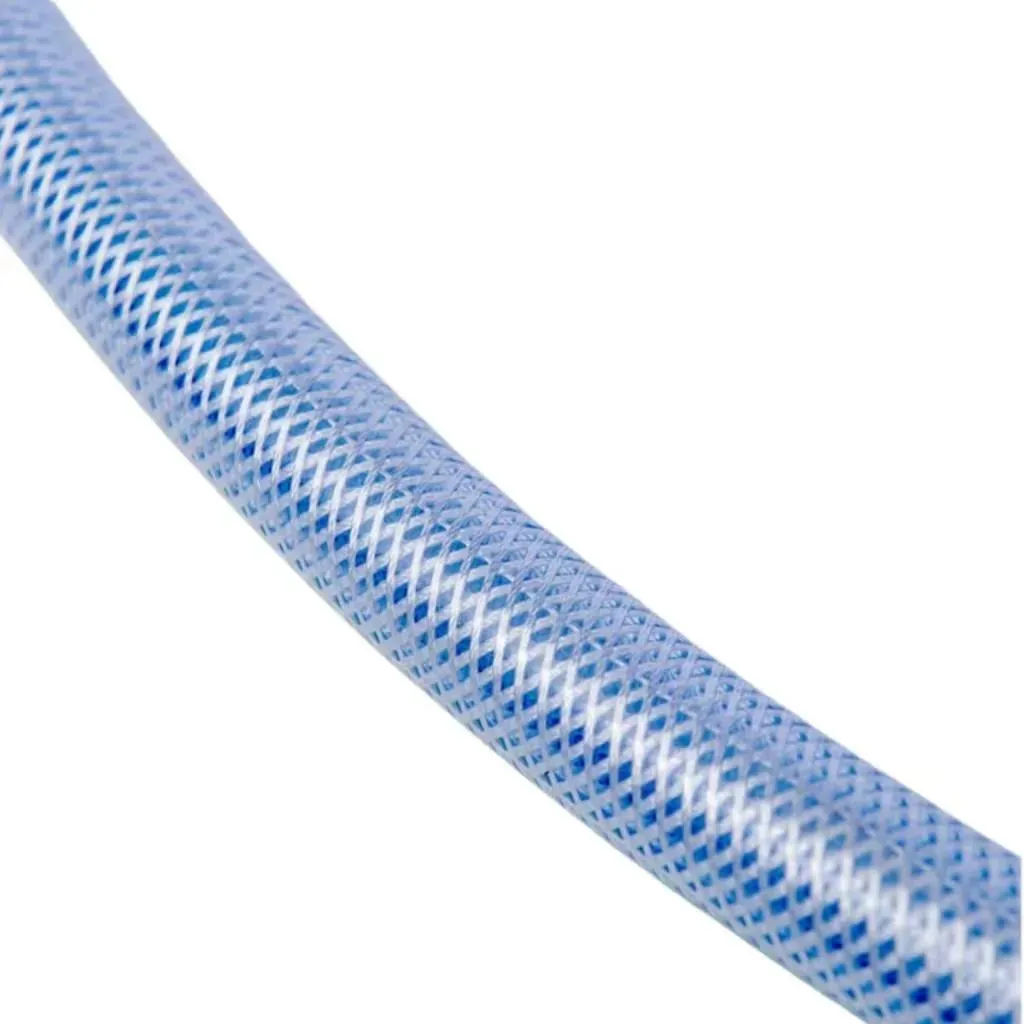

PVC fiber reinforced hose is reinforced with a polyester braid. This hose is extremely durable and resistant to various types of damage.
The reinforced PVC hose is more durable and resistant to kinks and tears than standard PVC hose, making it an ideal choice for applications that require a robust and reliable hose. Great for hydraulic, pneumatic, and vacuum lines
Characteristics of PVC Fibre Hose:

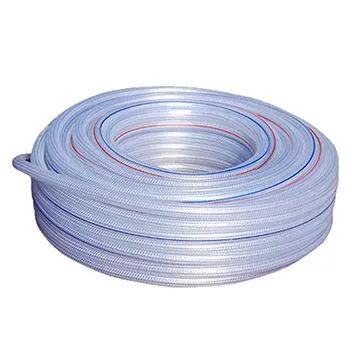

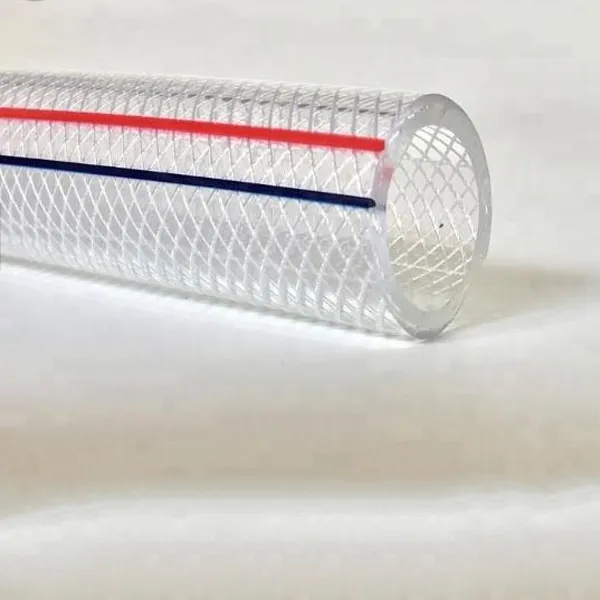

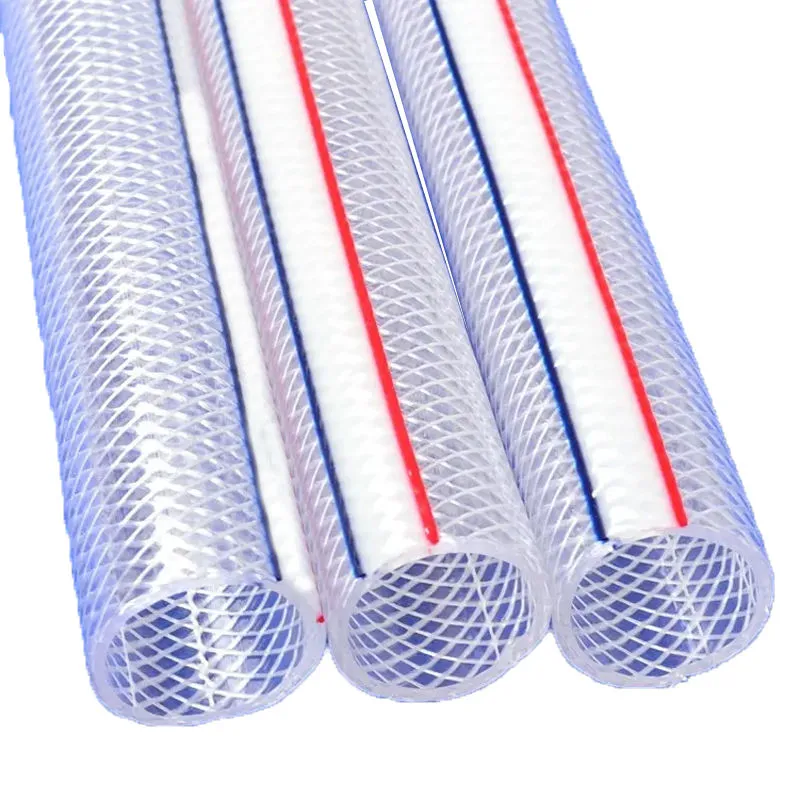

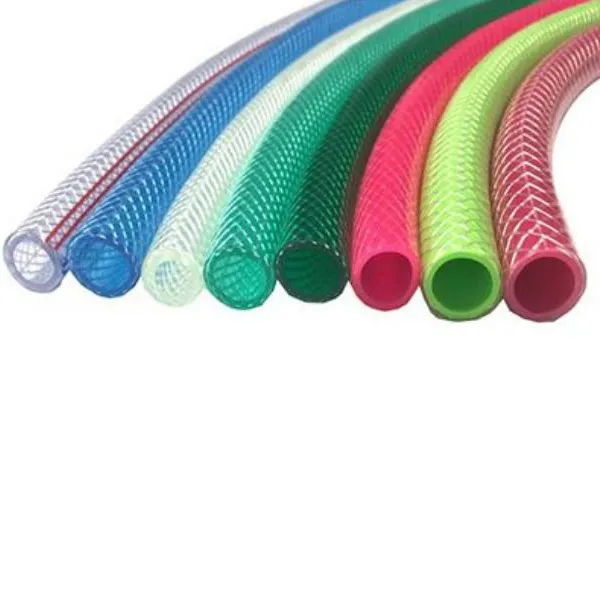

It is flexible, transparent, durable, non-toxic, without odor, anti-erosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.
Temperature: -10℃ ~65℃
Features
Flexible PVC tubing with spiral steel wire reinforcement in the wall
Made from FDA-compliant, non-toxic components
Resists kinking and extrusion
Handles pressure and full vacuum (29.9 in/Hg) applications
Glass-like clarity and mirror-smooth surface provide excellent visual flow characteristics
Lightweight (compared to rubber hose) and tough and abrasion-resistant
Designed to transport a wide range of fluids
Excellent resistance to harsh operating environments
Long-term clarity
Made from FDA-compliant, non-toxic components
Resists kinking and extrusion
Handles pressure and full vacuum (29.9 in/Hg) applications
Glass-like clarity and mirror-smooth surface provide excellent visual flow characteristics
Lightweight (compared to rubber hose) and tough and abrasion-resistant
Designed to transport a wide range of fluids
Excellent resistance to harsh operating environments
Long-term clarity
Specificatons Of PVC Fiber Reinforced Hose
| Item Code | Size | W.P. | B.P. | Length | Weight | Volume | ||||
| I.D | O.D | |||||||||
| inch | mm | mm | psi | bar | psi | bar | m/roll | kg/roll | m3 | |
| PFH-05 | 13/64" | 5 | 9 | 116 | 8 | 363 | 25 | 100 | 5.8 | 0.012 |
| PFH-06 | 1/4" | 6 | 10 | 145 | 10 | 435 | 30 | 100 | 6.6 | 0.015 |
| PFH-06B | 1/4" | 6 | 11 | 145 | 10 | 435 | 30 | 100 | 8.8 | 0.018 |
| PFH-06C | 1/4" | 6 | 12 | 145 | 10 | 435 | 30 | 100 | 11.2 | 0.019 |
| PFH-08 | 5/16" | 8 | 12 | 145 | 10 | 435 | 30 | 100 | 8.3 | 0.019 |
| PFH-08B | 5/16" | 8 | 13 | 145 | 10 | 435 | 30 | 100 | 10.9 | 0.025 |
| PFH-08C | 5/16" | 8 | 14 | 145 | 10 | 435 | 30 | 100 | 13.7 | 0.029 |
| PFH-09 | 3/8" | 9 | 13 | 131 | 9 | 392 | 27 | 100 | 9.1 | 0.025 |
| PFH-09B | 3/8" | 9 | 14 | 131 | 9 | 392 | 27 | 100 | 11.9 | 0.029 |
| PFH-10 | 13/32" | 10 | 14 | 116 | 8 | 348 | 24 | 100 | 9.9 | 0.029 |
| PFH-10B | 13/32" | 10 | 15 | 116 | 8 | 348 | 24 | 100 | 13 | 0.032 |
| PFH-10C | 13/32" | 10 | 16 | 116 | 8 | 348 | 24 | 100 | 16.2 | 0.038 |
| PFH-12 | 1/2" | 12 | 16 | 102 | 7 | 305 | 21 | 100 | 11.6 | 0.038 |
| PFH-12B | 1/2" | 12 | 17 | 102 | 7 | 305 | 21 | 100 | 15 | 0.042 |
| PFH-12C | 1/2" | 12 | 18 | 131 | 9 | 392 | 27 | 100 | 18.7 | 0.045 |
| PFH-13 | 1/2" | 13 | 17 | 87 | 6 | 261 | 18 | 100 | 12.4 | 0.042 |
| PFH-13B | 1/2" | 13 | 18 | 87 | 6 | 261 | 18 | 100 | 16.1 | 0.045 |
| PFH-13C | 1/2" | 13 | 19 | 116 | 8 | 348 | 24 | 100 | 19.9 | 0.052 |
| PFH-14 | 35/64" | 14 | 19 | 102 | 7 | 305 | 21 | 100 | 17.1 | 0.052 |
| PFH-14B | 35/64" | 14 | 20 | 102 | 7 | 305 | 21 | 100 | 21.1 | 0.057 |
| PFH-15 | 5/8" | 15 | 19 | 87 | 6 | 261 | 18 | 50 | 7.05 | 0.03 |
| PFH-15B | 5/8" | 15 | 20 | 102 | 7 | 305 | 21 | 50 | 9.05 | 0.03 |
| PFH-15C | 5/8" | 15 | 21 | 116 | 8 | 348 | 24 | 50 | 11.2 | 0.03 |
| PFH-16 | 5/8" | 16 | 20 | 73 | 5 | 218 | 15 | 50 | 7.45 | 0.03 |
| PFH-16B | 5/8" | 16 | 21 | 102 | 7 | 305 | 21 | 50 | 9.6 | 0.03 |
| PFH-16C | 5/8" | 16 | 22 | 116 | 8 | 348 | 24 | 50 | 11.8 | 0.031 |
| PFH-18 | 45/64" | 18 | 24 | 87 | 6 | 261 | 18 | 50 | 13.05 | 0.035 |
| PFH-19 | 3/4" | 19 | 23 | 58 | 4 | 174 | 12 | 50 | 8.7 | 0.043 |
| PFH-19B | 3/4" | 19 | 24 | 58 | 4 | 174 | 12 | 50 | 11.15 | 0.043 |
| PFH-19C | 3/4" | 19 | 25 | 102 | 7 | 305 | 21 | 50 | 13.7 | 0.045 |
| PFH-19C | 3/4" | 19 | 26 | 116 | 8 | 348 | 24 | 50 | 16.3 | 0.05 |
| PFH-20 | 25/32" | 20 | 25 | 87 | 6 | 261 | 18 | 50 | 11.65 | 0.046 |
| PFH-20B | 25/32" | 20 | 26 | 87 | 6 | 261 | 18 | 50 | 14.3 | 0.048 |
| PFH-20C | 25/32" | 20 | 27 | 102 | 7 | 305 | 21 | 50 | 17.05 | 0.051 |
| PFH-20D | 25/32" | 20 | 28 | 102 | 7 | 305 | 21 | 50 | 19.9 | 0.057 |
| PFH-22 | 7/8" | 22 | 27 | 73 | 5 | 218 | 15 | 50 | 12.7 | 0.056 |
| PFH-22B | 7/8" | 22 | 28 | 87 | 6 | 261 | 18 | 50 | 15.55 | 0.058 |
| PFH-22C | 7/8" | 22 | 29 | 87 | 6 | 261 | 18 | 50 | 18.5 | 0.058 |
| PFH-22C | 7/8" | 22 | 30 | 102 | 7 | 305 | 21 | 50 | 21.55 | 0.058 |
| PFH-25 | 1" | 25 | 30 | 58 | 4 | 174 | 12 | 50 | 14.25 | 0.068 |
| PFH-25B | 1" | 25 | 31 | 73 | 5 | 218 | 15 | 50 | 17.4 | 0.072 |
| PFH-25C | 1" | 25 | 32 | 73 | 5 | 218 | 15 | 50 | 20.65 | 0.077 |
| PFH-25D | 1" | 25 | 33 | 87 | 6 | 261 | 18 | 50 | 24.05 | 0.079 |
| PFH-32 | 1-1/4" | 32 | 39 | 58 | 4 | 174 | 12 | 40 | 20.6 | 0.119 |
| PFH-32B | 1-1/4" | 32 | 40 | 73 | 5 | 218 | 15 | 40 | 23.88 | 0.119 |
| PFH-32C | 1-1/4" | 32 | 41 | 73 | 5 | 218 | 15 | 40 | 27.24 | 0.103 |
| PFH-32D | 1-1/4" | 32 | 42 | 73 | 5 | 218 | 15 | 40 | 30.68 | 0.103 |
| PFH-38 | 1-1/2" | 38 | 45 | 58 | 4 | 174 | 12 | 40 | 24.08 | 0.151 |
| PFH-38B | 1-1/2" | 38 | 46 | 58 | 4 | 174 | 12 | 40 | 27.84 | 0.151 |
| PFH-38C | 1-1/2" | 38 | 48 | 58 | 4 | 174 | 12 | 40 | 35.64 | 0.155 |
| PFH-45 | 1-3/4" | 45 | 55 | 58 | 4 | 174 | 12 | 40 | 41.44 | 0.217 |
| PFH-50 | 2" | 50 | 58 | 44 | 3 | 131 | 9 | 40 | 35.8 | 0.198 |
| PFH-50B | 2" | 50 | 59 | 58 | 4 | 174 | 12 | 40 | 40.68 | 0.198 |
| PFH-50C | 2" | 50 | 60 | 58 | 4 | 174 | 12 | 40 | 45.6 | 0.198 |
| PFH-50D | 2" | 50 | 62 | 58 | 4 | 174 | 12 | 40 | 55.72 | 0.209 |
| PFH-64 | 2-1/2" | 64 | 78 | 58 | 4 | 174 | 12 | 40 | 82.4 | 0.304 |
| PFH-75 | 3" | 75 | 90 | 58 | 4 | 174 | 12 | 40 | 102.6 | 0.35 |
We offer a range of reinforced PVC tubes in varouis sizes. However, if none of these options are suitable for your application, can provide custom reinforced PVC tubes to meet your unique needs.
PVC tubes can be custom printed with the lettering or numbering you require for easy installation and identification.
Custom cutting (length), coiling, packaging and other options are available. Please contact us to discuss your custom pipe requirements.
