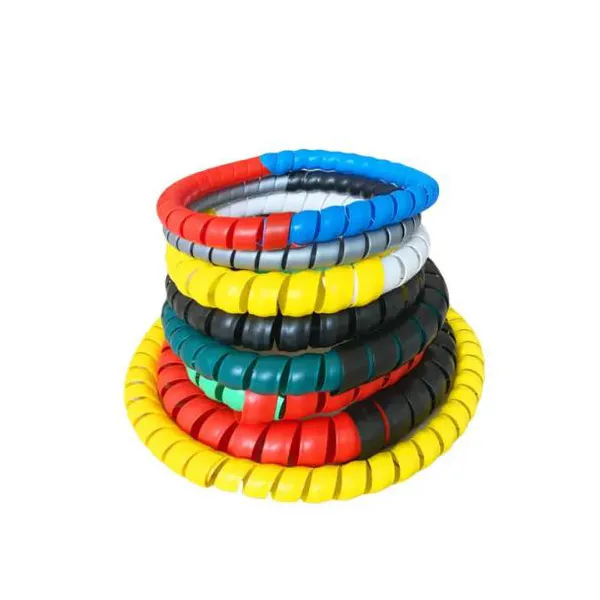

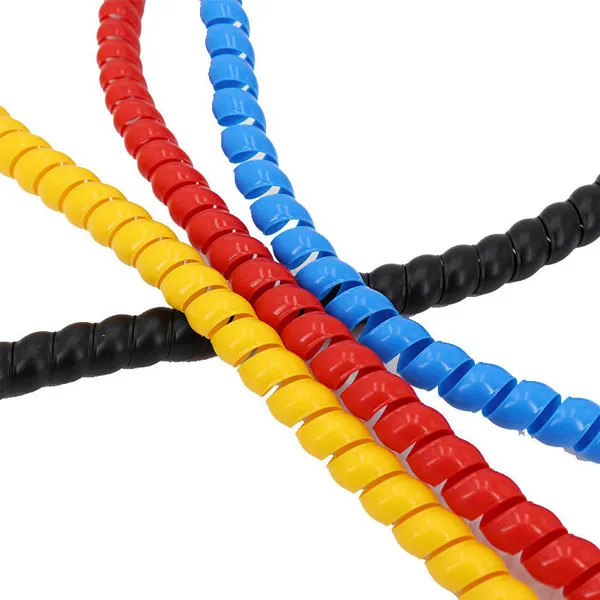

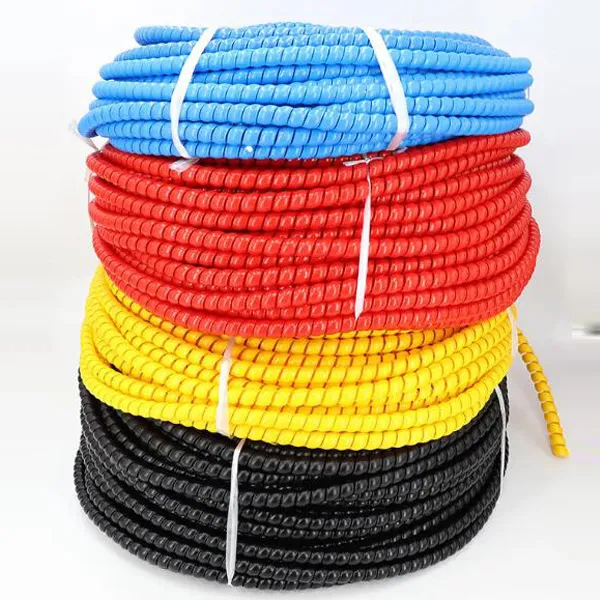

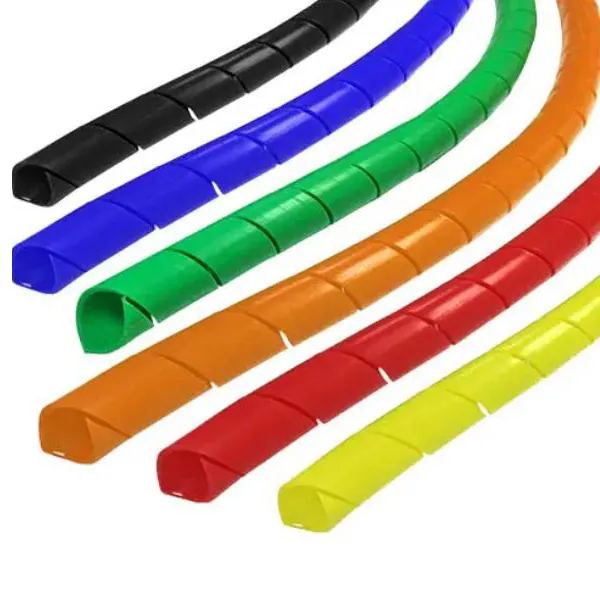

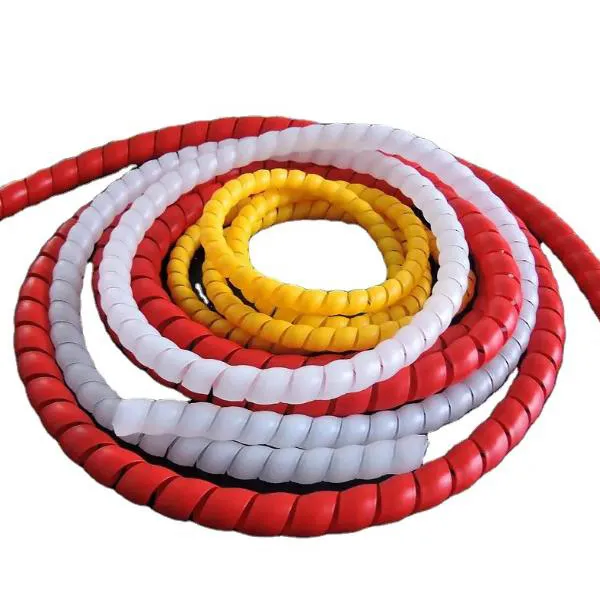

The use of Spiral Guard Wrap is an economical and convenient method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope from premature wear. Manufactured from extruded high density polyethylene (HDPE), Spiral Guard Wrap will withstand the extremes of climate and operating conditions.Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards Spiral Guard Wrap’s open spiral design allows for simple installation in the field, without the need to disconnect lines.
high-density Polyethylene, spiral-formed protection system, wear, cut, and crush-resistant
polymer Tensile Strength 25MPa at room temperature.
"Mining, equipment, forestry, agriculture, trucking, automotive applications.The use of spiral hose guard is an economical and convenient method of protecting and extending the life of hydraulic and
pneumatic hoses, cables, wires and rope from premature wear.Spiral hose guard will withstand the extremes of climate and operating conditions.
Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards."
Temperature Range -60℉ to +210℉ (-50℃ to +100℃)
| Item Code | I.D | Thickness | Width | Applied for | |||
| mm | inch | mm | mm | mm | |||
| HPS-8 | 8 | 5/16" | 1.5 | 7 | 43322.00 | ||
| HPS-10 | 10 | 3/8" | 1.5 | 10 | 43385.00 | ||
| HPS-12 | 12 | 1/2" | 1.5 | 12 | 43448.00 | ||
| HPS-14 | 14 | 11/20" | 1.5 | 13 | 14-16 | ||
| HPS-16 | 16 | 5/8" | 2 | 15.5 | 16-18 | ||
| HPS-18 | 18 | 3/4" | 2 | 16 | 18-20 | ||
| HPS-20 | 20 | 4/5" | 2.2 | 16 | 20-22 | ||
| HPS-22 | 22 | 43/50" | 2.2 | 19.5 | 22-25 | ||
| HPS-25 | 25 | 1" | 2.2 | 22.5 | 25-28 | ||
| HPS-28 | 28 | 1-1/10" | 2.2 | 23 | 28-30 | ||
| HPS-30 | 30 | 1-9/50" | 2.5 | 23 | 30-32 | ||
| HPS-32 | 32 | 1-1/4" | 2.5 | 23.5 | 32-35 | ||
| HPS-35 | 35 | 1-19/50" | 2.5 | 24 | 35-38 | ||
| HPS-38 | 38 | 1-1/2" | 3 | 28 | 38-40、42 | ||
| HPS-40 | 40 | 1-29/50" | 3 | 28 | 40-42 | ||
| HPS-42 | 42 | 1-13/20" | 3.5 | 28 | 42-45 | ||
| HPS-45 | 45 | 1-39/50" | 3.5 | 28 | 45-50 | ||
| HPS-50 | 50 | 2" | 3.5 | 28 | 50-60 | ||
| HPS-60 | 60 | 2-1/2" | 4 | 28 | 60-74 | ||
| HPS-74 | 74 | 2-9/10" | 4 | 46.5 | 74-80 | ||
| HPS-80 | 80 | 3-3/20" | 4.5 | 48.5 | 80-88 | ||
| HPS-88 | 88 | 3-1/2" | 4.5 | 50 | 88-100 | ||
| HPS-100 | 100 | 4" | 4.5 | 57 | 100-130 | ||
| HPS-130 | 130 | 5" | 4.5 | 50 | 130-155 | ||
| HPS-150 | 150 | 6" | 4.5 | 50 | 150-200 | ||
| HPS-200 | 200 | 7-22/25" | 5 | 50 | 200 | ||
