Construction:

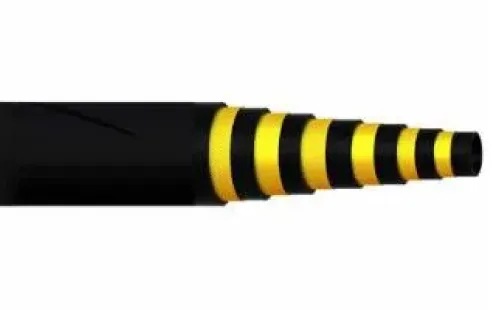

This hose shall consist of an inner tube of oil resistant synthetic rubber, 4 layers of spiral steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover.
Applications of Steel Wire Spiral Hydraulic Hose:
Hose range suitable for use with petroleum base hydraulic fluids within a temperature range of -40℃- +100℃.
STANDARD: SAE 100 R9
| Item Code | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | ||||||
| mm | inch | min | max | MPa | psi | MPa | psi | mm | inch | kg/m | lb/ft | |
| R9-10 | 10 | 3/8 | 20.6 | 22.2 | 31.5 | 4565 | 126 | 18270 | 125 | 5 | 0.7 | 0.47 |
| R9-13 | 12.5 | 1/2 | 23.8 | 25.4 | 28 | 4060 | 112 | 16240 | 180 | 7 | 0.83 | 0.58 |
| R9-19 | 19 | 3/4 | 30.6 | 32.2 | 21 | 3045 | 84 | 12180 | 240 | 9.4 | 1.3 | 0.87 |
| R9-25 | 25 | 1 | 38.5 | 40.9 | 21 | 3045 | 84 | 12180 | 300 | 11.8 | 1.7 | 1.14 |
| R9-32 | 31.5 | 1 1/4 | 49.2 | 52.4 | 17.5 | 2537.5 | 70 | 10150 | 420 | 16.5 | 3.08 | 2.07 |
| R9-38 | 38 | 1 1/2 | 55.6 | 58.7 | 14 | 2030 | 56 | 8120 | 500 | 20 | 4.3 | 2.89 |
| R9-51 | 51 | 2 | 69.9 | 73 | 14 | 2030 | 56 | 8120 | 660 | 26 | 5.63 | 3.78 |
STANDARD: SAE 100 R10
| Item Code | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | ||||||
| mm | inch | min | max | MPa | psi | MPa | psi | mm | inch | kg/m | lb/ft | |
| R10-06 | 6.3 | 1/4 | 19.8 | 21.4 | 61 | 8845 | 245 | 35525 | 125 | 5 | 0.73 | 0.49 |
| R10-10 | 10 | 3/8 | 23 | 24.6 | 52.5 | 7612.5 | 210 | 30450 | 150 | 6 | 0.82 | 0.55 |
| R10-13 | 12.5 | 1/2 | 27 | 28.6 | 43.5 | 6307.5 | 175 | 25375 | 200 | 8 | 0.96 | 1.42 |
| R13-19 | 19 | 3/4 | 35.7 | 37.3 | 35 | 5075 | 140 | 20300 | 280 | 11 | 1.65 | 1.11 |
| R10-25 | 25 | 1 | 43.3 | 45.6 | 28 | 4060 | 112 | 16240 | 360 | 14 | 2.3 | 1.55 |
| R10-32 | 31.8 | 1 1/4 | 49.2 | 52.4 | 21 | 3045 | 84 | 12180 | 460 | 18 | 3.25 | 2.18 |
| R10-38 | 38 | 1 1/2 | 55.6 | 58.7 | 17.5 | 2537.5 | 70 | 10150 | 560 | 22 | 3.95 | 2.65 |
| R10-51 | 51 | 2 | 69.1 | 72.1 | 17.5 | 2537.5 | 70 | 10150 | 710 | 28 | 4.95 | 3.33 |
STANDARD: SAE 100 R12
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| inch | mm | inch | mm | psi | MPa | psi | MPa | inch | mm | kg/m | lb/ft | |
| R12-10 | 3/8 | 9.5 | 0.8 | 20.3 | 4000 | 28 | 16000 | 112 | 4.9 | 125 | 0.7 | 0.47 |
| R12-13 | 1/2 | 12.7 | 0.94 | 24.1 | 4000 | 28 | 16000 | 112 | 7.1 | 180 | 0.84 | 0.56 |
| R12-16 | 5/8 | 15.9 | 1.09 | 27.7 | 4000 | 28 | 16000 | 112 | 7.8 | 200 | 1.1 | 0.74 |
| R12-19 | 3/4 | 19 | 1.21 | 30.7 | 4000 | 28 | 16000 | 112 | 9.4 | 240 | 1.33 | 0.89 |
| R12-25 | 1 | 25.4 | 1.5 | 38.1 | 4000 | 28 | 16000 | 112 | 11.8 | 300 | 1.85 | 1.24 |
| R12-32 | 1 1/4 | 31.8 | 1.85 | 47 | 3000 | 21 | 12000 | 84 | 16.5 | 420 | 2.65 | 1.78 |
| R12-38 | 1 1/2 | 38.1 | 2.11 | 53.5 | 2500 | 17.5 | 10000 | 70 | 19.7 | 500 | 3.2 | 2.15 |
| R12-51 | 2 | 50.8 | 2.63 | 66.7 | 2500 | 17.5 | 10000 | 70 | 24.8 | 630 | 4.5 | 3.02 |

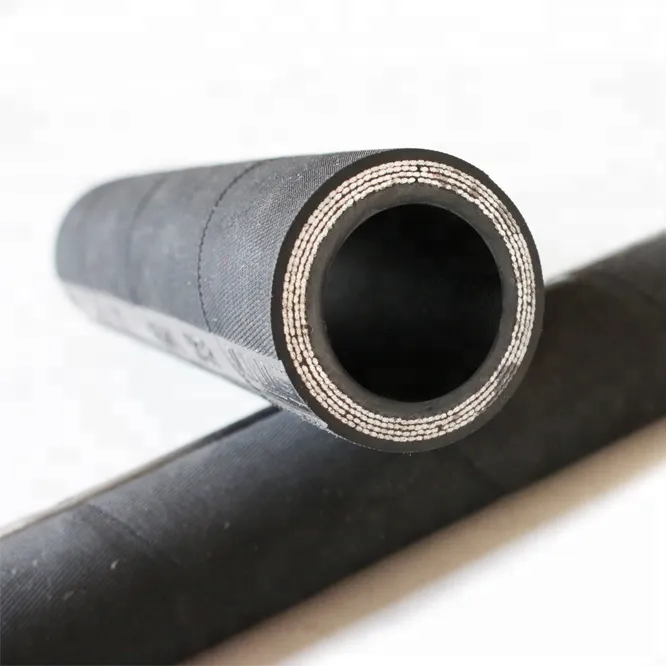

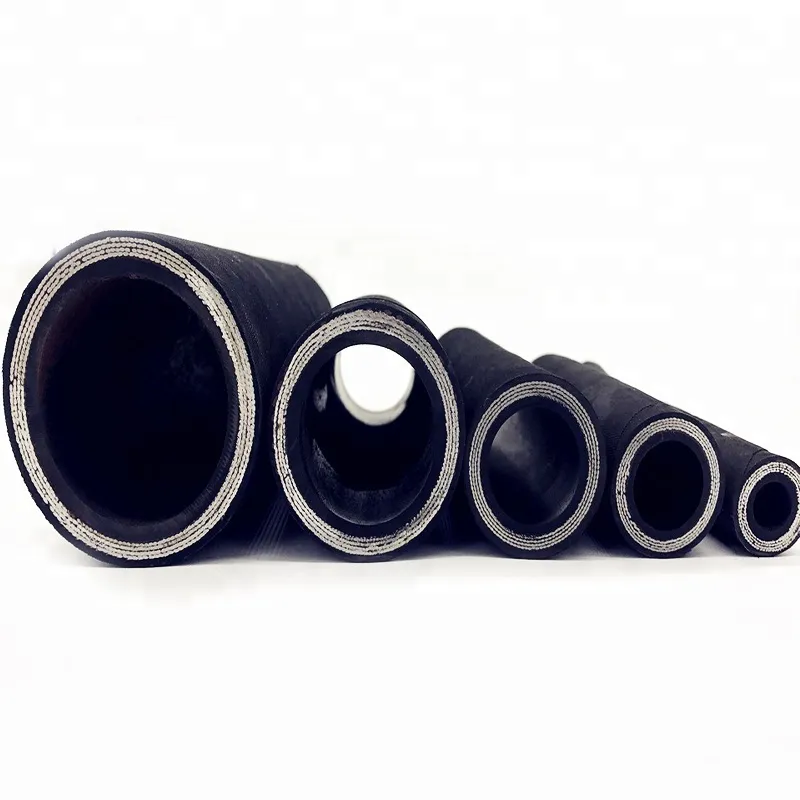

SAE 100R9/SAE 100 R10/SAE 100R12 hydraulic hoses are vital for high-pressure hydraulic applications, offering durability, flexibility, and reliability. The hose is used for the delivery of hydraulic liquids or water based liquids. SAE 100R9/SAE 100 R10/SAE 100R12 hoses have three parts: an inner tube of oil resistant synthetic rubber, four spiral plies of steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover.
This hose has excellent pressure, corrosion, and wear resistance and good flexibility. Also it can work well under a high temperature in systems. SAE 100R9/SAE 100 R10/SAE 100R12 is designed to operate effectively in a temperature range of -40°F to 257°F (-40°C to 125°C), making it versatile for different environments. Additionally, the compatibility with hydraulic fluids, including petroleum-based oils and water-based fluids, ensures that it can be used in a wide array of hydraulic systems.
We will conduct a series of tests on the purchased materials, including rubber hardness test, steel wire tension test, etc. Unsuitable materials will not be put into production. Only qualified materials will be used to manufacture hoses.
We use two quality control systems, online and offline. Online, there is Enterprise Resource Planning that records the production process, operators, and operation dates, and offline, there is a manually filled hydraulic hose ID card. The quality tracking card is specially used to record the key parameters of the manufacturing process.
Our hydraulic hoses are normally packed with plastic films or woven bags. Special packaging can be customized according to customer requirements
