Recommended For:Low-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R6AT.
Tube:Black, oil resistant, synthetic rubber.
Reinforcement:one braids fiber layer
Cover:Black, oil, abrasion and weather resistant, thin synthetic rubber.
Temperature Range:-40℉ to +250℉ (-40℃ to +121℃)
| Item Code | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | ||||||
| mm | inch | min | max | MPa | psi | MPa | psi | mm | inch | kg/m | lb/ft | |
| R6-05 | 5 | 3/16 | 10.3 | 11.9 | 3.5 | 507.5 | 14 | 2030 | 50 | 2 | 0.1 | 0.07 |
| R6-06 | 6.3 | 1/4 | 11.9 | 13.5 | 2.8 | 406 | 11.2 | 1625 | 65 | 2.6 | 0.13 | 0.09 |
| R6-08 | 8 | 5/16 | 13.5 | 15.1 | 2.8 | 406 | 11.2 | 1625 | 75 | 3 | 0.15 | 0.1 |
| R6-10 | 10 | 3/8 | 15.1 | 16.7 | 2.8 | 406 | 11.2 | 1625 | 75 | 3 | 0.18 | 0.12 |
| R6-13 | 12.5 | 1/2 | 19 | 20.6 | 2.8 | 406 | 11.2 | 1625 | 100 | 4 | 0.26 | 0.17 |
| R6-16 | 16 | 5/8 | 22.2 | 23.8 | 2.4 | 348 | 9.8 | 1420 | 125 | 5 | 0.31 | 0.21 |
| R6-19 | 19 | 3/4 | 25.4 | 27.8 | 2.1 | 305 | 8.4 | 1220 | 150 | 6 | 0.4 | 0.27 |

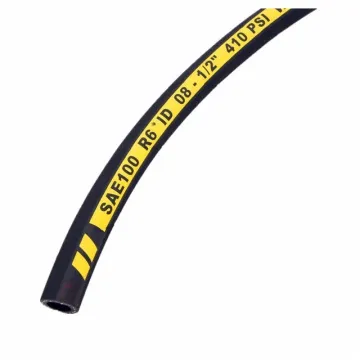

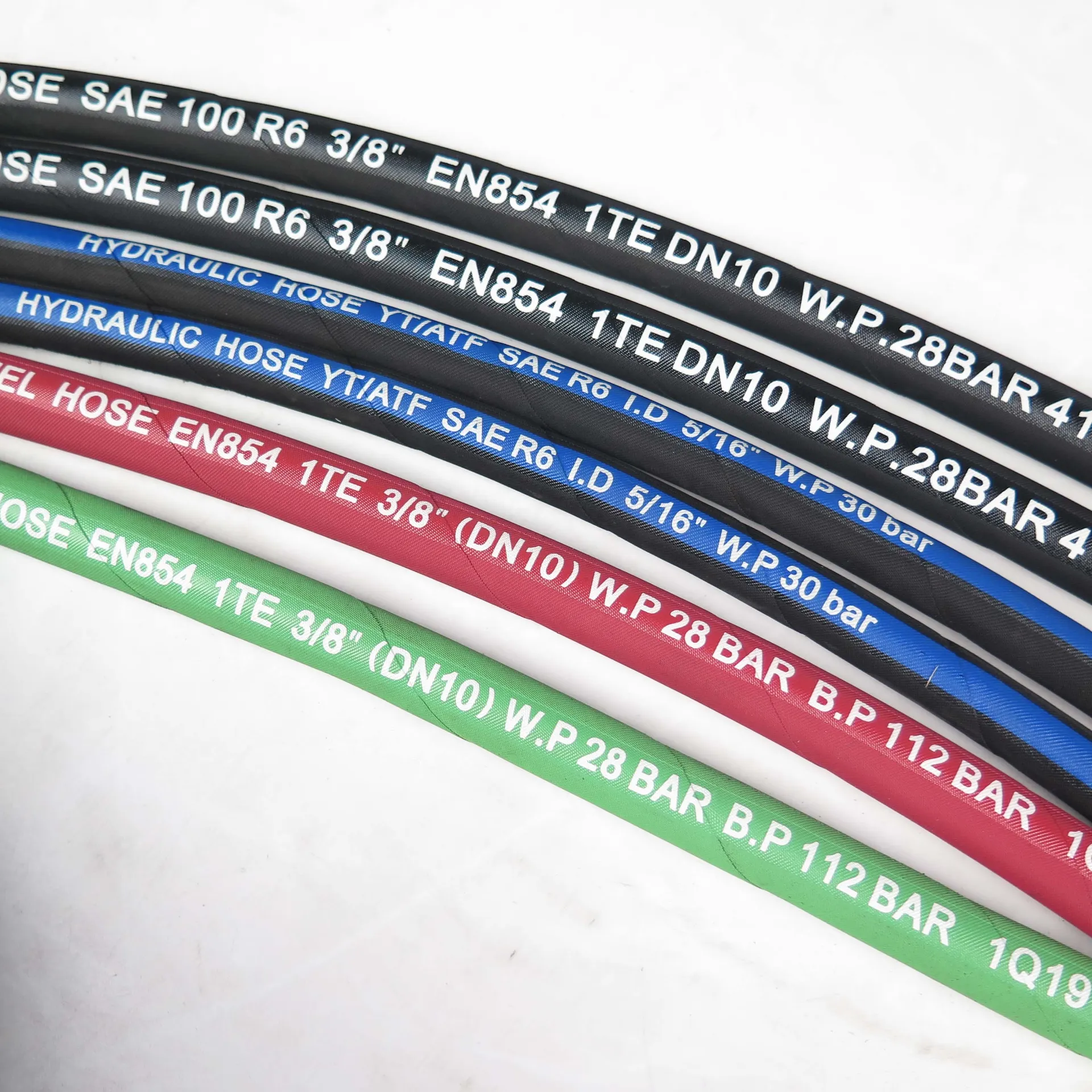

Textile reinforced hydraulic hose SAE 100 R6

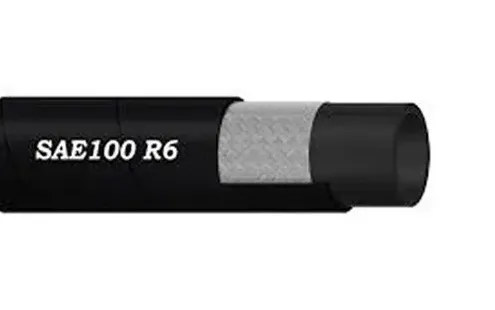

Hydraulic Hose SAE 100 R6 widely serves to deliver petroleum and water based hydraulic fluids. It is composed of three parts, the inner and outer rubber are synthetic rubber, and the middle reinforcement is one layer of textile braid, same reinforcement material as SAE 100 R3 hydraulic hose. Because the reinforcement is made from one layer of braided textile, making it widely used in low pressure applications, but it makes the hose more flexible and light in weight.
we are a professional manufacturer and exporter of hydraulic hoses and fittings, including SAE 100R1, R2, R3,R6, EN 856 4sh, 4sp. They can produced by our workshop.
In our lab, we make the raw material testings, each batch of raw material is tested before production. Good quality materials make our hydraulic hose steady performance, good decentrality and excellent and oil resistance.
In the workshop, we use advanced technology and equipment to make the best quality hydraulic hose, erery hose has respective quality tracking card, ensure each hose is 100 percent qualified.
After production finished, the hoses will be packaged and kept in the warehouse waiting to be loaded. Usually the packaging transparent plastic film or glow woven bag by an automatic packing machine, which could make sure a good packing, special packing is available according to customers requirements.
we are ready to provide high quality products with competitive price and excellent service to you and we sincerely hope we can start business with you onbasis of mutual benefits you.
