Construction:
This hose shall consist of an inner tube of oil resistant synthetic rubber, multiple layers of spiral plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover.
Applications of Heavy Duty Steel Wire Spiral Hydraulic Hose:
Hose range suitable for use with petroleum base hydraulic fluids within a temperature rang of -40℃- +121℃.
STANDARD: SAE 100 R13
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| inch | mm | inch | mm | psi | MPa | psi | MPa | inch | mm | kg/m | lb/ft | |
| R13-10 | 3/8 | 9.5 | 0.94 | 23.8 | 10000 | 69 | 40000 | 276 | 5.98 | 152 | 1.1 | 0.74 |
| R13-13 | 1/2 | 12.7 | 1.06 | 27 | 7500 | 51.2 | 30000 | 207 | 7.87 | 200 | 1.35 | 0.91 |
| R13-16 | 5/16 | 15.9 | 1.09 | 27.7 | 5000 | 35 | 20000 | 140 | 8.66 | 220 | 1.55 | 1.04 |
| R13-19 | 3/4 | 19 | 1.26 | 32 | 5000 | 35 | 20000 | 140 | 9.45 | 240 | 1.65 | 1.11 |
| R13-25 | 1 | 25.4 | 1.54 | 39.2 | 5000 | 35 | 20000 | 140 | 11.81 | 300 | 2.25 | 1.51 |
| R13-32 | 1 1/4 | 31.8 | 1.96 | 49.8 | 5000 | 35 | 20000 | 140 | 16.54 | 420 | 3.6 | 2.42 |
| R13-38 | 1 1/2 | 38.1 | 2.26 | 57.3 | 5000 | 35 | 20000 | 140 | 19.69 | 500 | 4.75 | 3.19 |
| R13-51 | 2 | 50.8 | 2.83 | 71.9 | 5000 | 35 | 20000 | 140 | 24.8 | 630 | 6.9 | 4.64 |
STANDARD: SAE 100 R15
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| inch | mm | inch | mm | psi | MPa | psi | MPa | inch | mm | kg/m | lb/ft | |
| R15-10 | 3/8 | 9.5 | 0.92 | 23.3 | 6000 | 41.4 | 24000 | 165.5 | 6 | 153 | 0.77 | 0.52 |
| R15-13 | 1/2 | 12.7 | 1.06 | 26.8 | 6000 | 41.4 | 24000 | 165.5 | 8 | 203 | 0.92 | 0.62 |
| R15-19 | 3/4 | 19 | 1.42 | 36.1 | 6000 | 41.4 | 24000 | 165.5 | 10.5 | 267 | 1.5 | 1.01 |
| R15-25 | 1 | 25.4 | 1.69 | 42.9 | 6000 | 41.4 | 24000 | 165.5 | 13 | 330 | 2.1 | 1.41 |
| R15-32 | 1 1/4 | 31.8 | 2.02 | 51.5 | 6000 | 41.4 | 24000 | 165.5 | 17.5 | 445 | 3.6 | 2.42 |
| R15-38 | 1 1/2 | 38.1 | 2.35 | 59.6 | 6000 | 41.4 | 24000 | 165.5 | 21 | 533 | 5.1 | 3.43 |

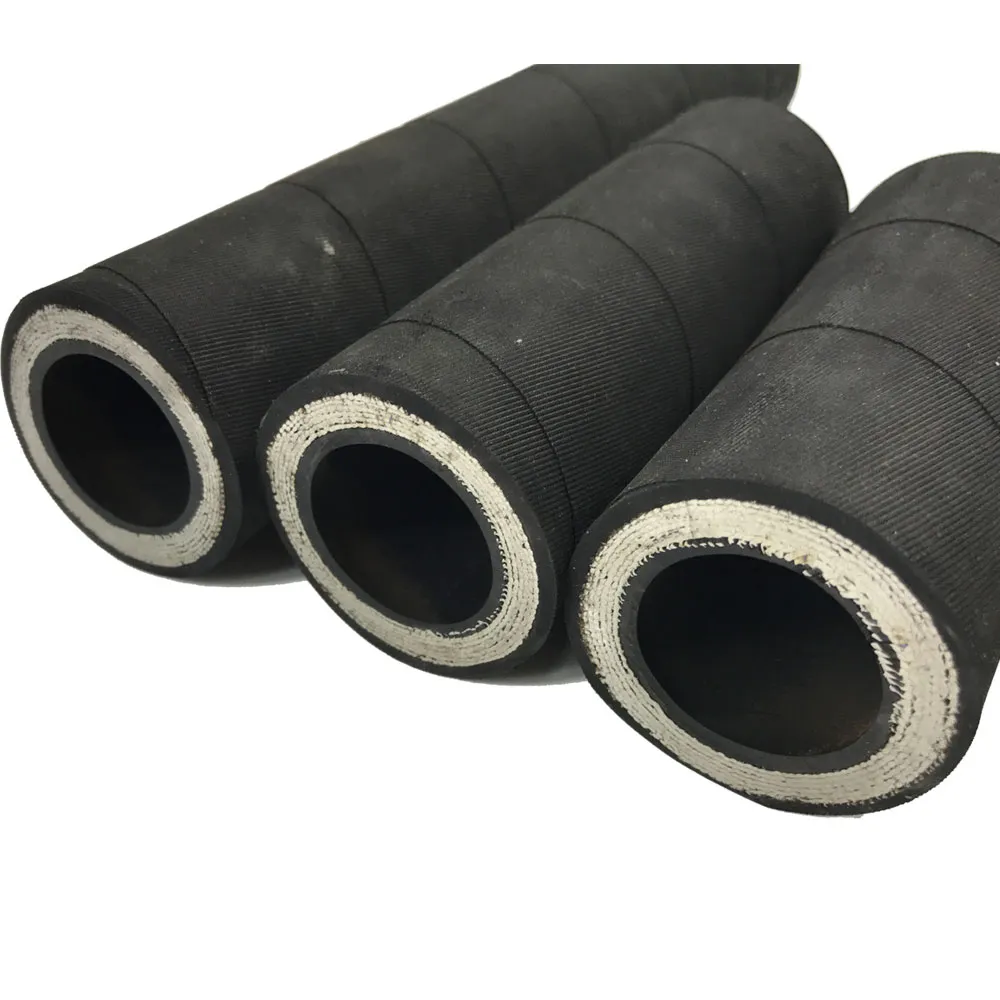

SAE 100 R13 steel wire spiraled hydraulic hose is suitable for high pressure hydraulic system, used for conveying mineral and biological oils, water-glycol based, water, lubricants. It has a fixed working pressure of 350bar (5075PSI), a safety factor of four times, and a bursting pressure of 1400bar (20300PSI). The structure consists of three parts, the inner tube is made of black oil-resistant synthetic rubber, and the reinforcement layer is made of four or six layers of high-tensile and high-strength steel wires alternately wound, so that the hose has extremely high working pressure. The number of layers of steel wire can control the working pressure of the hydraulic hose, Four layers of high-strength steel wire spiral up to size 1”; Six layers of spiral from size 1-1/4” to 2”. The outer hose is made of high-quality black synthetic rubber, which makes the hose resistant to wear, corrosion, cutting, weathering, ozone, aging and sunlight.

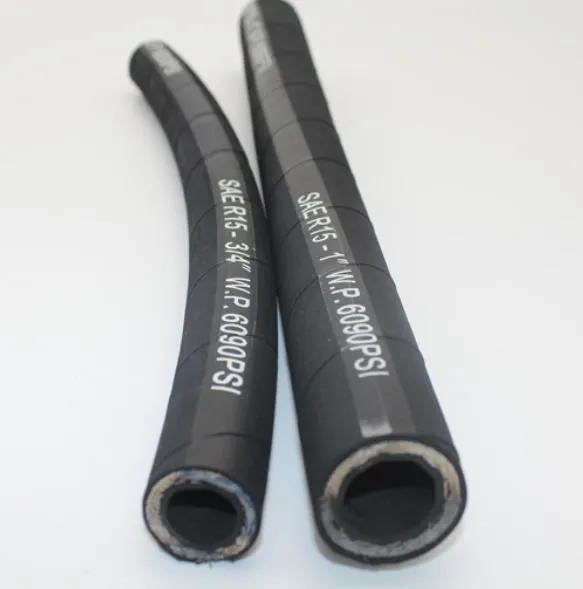

SAE 100 R15 hydraulic hose is suitable for petroleum-based hydraulic oil delivery in high-pressure and high-pulse applications. The structure of SAE 100 R15 and SAE 100 R13 is similar, they are all high-pressure steel wire spiral hydraulic hoses. But R15 can withstand higher pressure than R13 and can be designed in a smaller size. SAE 100 R15 hose has a working pressure of 420bar.
What is SAE 100R13/SAE R15?
SAE 100R13/SAE R15 is a four-layer or six-layer steel wire spiral reinforced hydraulic hose, SAE 100R13/SAE R15 is suitable for high pressure, high-temperature and high impulse hydraulic applications, used to transport petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. It has excellent pressure resistance, wear resistance, corrosion resistance, and durability. The stable working pressure of SAE 100R13 working pressure 350bar ,SAE 100 R15 hose working pressure of 420bar,makes it widely used in various industries.
