A Field-Ready Look at sae 100r9 Hydraulic Hose
If you’ve ever waited on a machine to come back online because of a blown pressure line, you know the value of a dependable, high‑pressure spiral hose. The sae 100r9 class sits right in that sweet spot: tough, oil‑resistant, and built for punishing duty cycles. I’ve seen it on excavators, 4-post presses, even injection molding machines that absolutely cannot hiccup at peak load.
What it is (and what’s trending)
A classic sae 100r9 hose is a spiral-wire reinforced hydraulic line designed for high impulse pressure. Today’s trend? Higher impulse life and abrasion covers without ballooning cost. Manufacturers in CHANGAN DISTRICT, SHIJIAZHUANG, HEBEI, CHINA are quietly pushing tighter tolerance control and smarter compounds, and—surprisingly—shorter lead times thanks to in-house spiral lines.
Construction & key specs

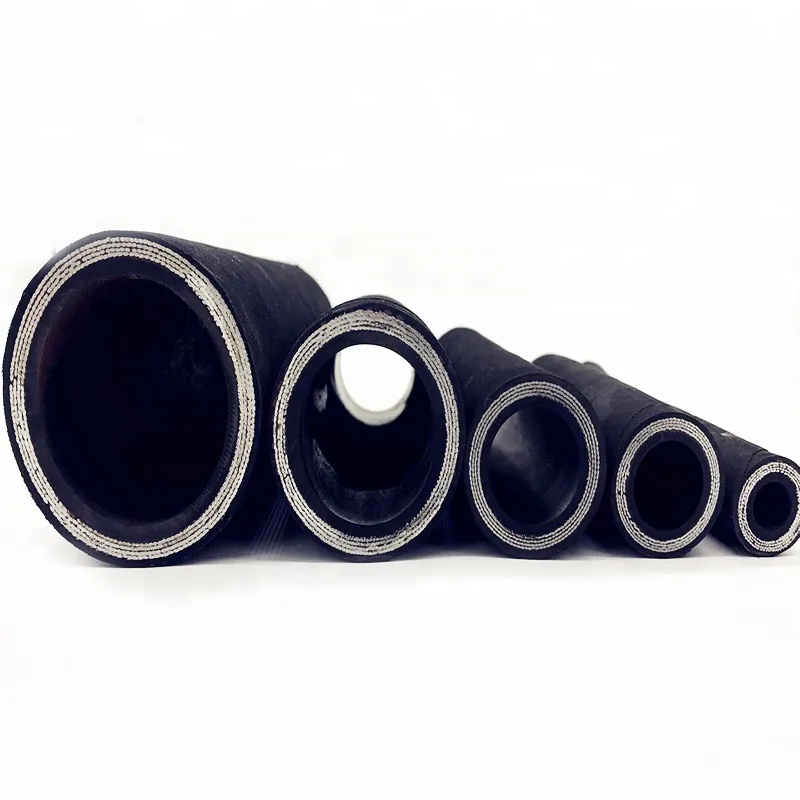

Construction (simplified): inner tube of oil‑resistant synthetic rubber, 4 layers of high‑tensile steel wire spirals, and a weather/ozone/abrasion‑resistant cover. Real-world details below.
| Parameter | Typical for sae 100r9 | Notes |
|---|---|---|
| Inner tube | NBR, oil‑resistant | Fuel/oil compatible; low swell |
| Reinforcement | 4 spiral steel wire layers | High impulse stability |
| Cover | CR/CSM abrasion‑resistant | Optional MSHA flame‑resistant |
| Working pressure | ≈ 21–42 MPa (3000–6000 psi) | Varies by bore size |
| Burst pressure | ≥ 4× WP | Per SAE J517 requirements |
| Temperature | −40°C to +100/121°C | Fluid and duty cycle dependent |
Process flow, testing, and service life
Materials are compound‑mixed (NBR/CR or CSM), extruded for the tube, spiral‑wound with 4 steel layers under controlled tension, then cover‑extruded and vulcanized. QC checkpoints: dimensional tolerance, adhesion pull tests, proof pressure, burst (≥4×), and impulse testing—often 200,000 cycles at rated pressure for R12 class; sae 100r9 typically targets similar or slightly lower bands depending on bore. In the field, many customers say they see 3–5 years of service with proper routing and clamps—longer with protective sleeves.
Where it works best
- Construction/mining: excavators, wheel loaders, longwall systems
- Industrial: presses, injection molding, hydraulic power units
- Agriculture & forestry: harvesters, balers, forwarders
- Oil & gas and marine deck gear where high impulse is routine
Vendor snapshot (quick, honest take)
| Vendor | Certs | Impulse test (≈) | Lead time | Notes |
|---|---|---|---|---|
| ZSmartFlex (Hebei) | ISO 9001; optional MSHA cover | 180k–220k cycles | 15–28 days | Custom branding, small MOQs |
| GlobalBrand A | ISO 9001/14001 | ≥200k cycles | 4–6 weeks | Premium pricing |
| BudgetBrand B | ISO 9001 | 120k–150k cycles | 2–4 weeks | Watch cover abrasion rates |
Customization options
Bore sizes from 3/8″ to 2″, color‑coded covers, anti‑abrasion wraps, OEM logos, and assemblies with JIC/BSP/NPT fittings. For hot oils, ask for upgraded tube stocks; for tight routing, verify bend radius (e.g., 3/4″ bore ≈ 240 mm).
Mini case study
A quarry retrofitted a loader fleet from mixed spiral hoses to a unified sae 100r9 spec. Downtime fell by roughly 28% over six months; impulse failures basically disappeared. The foreman told me, “Not glamorous, but the hoses just stopped being a problem.” That’s the whole point.
Compliance and references
Designed to SAE J517 (Types R9/R10/R12); similar performance envelopes to ISO 6805 and widely cross‑referenced with ISO 18752 for application selection. Always confirm fluid compatibility and local regulatory needs.
- SAE J517: Hydraulic Hose and Hose Assemblies – Requirements and Performance.
- ISO 6805: Rubber hoses and hose assemblies — Rubber-covered spiral-wire-reinforced hydraulic types.
- ISO 18752: Hydraulic fluid power — Specification for rubber hoses and hose assemblies.
