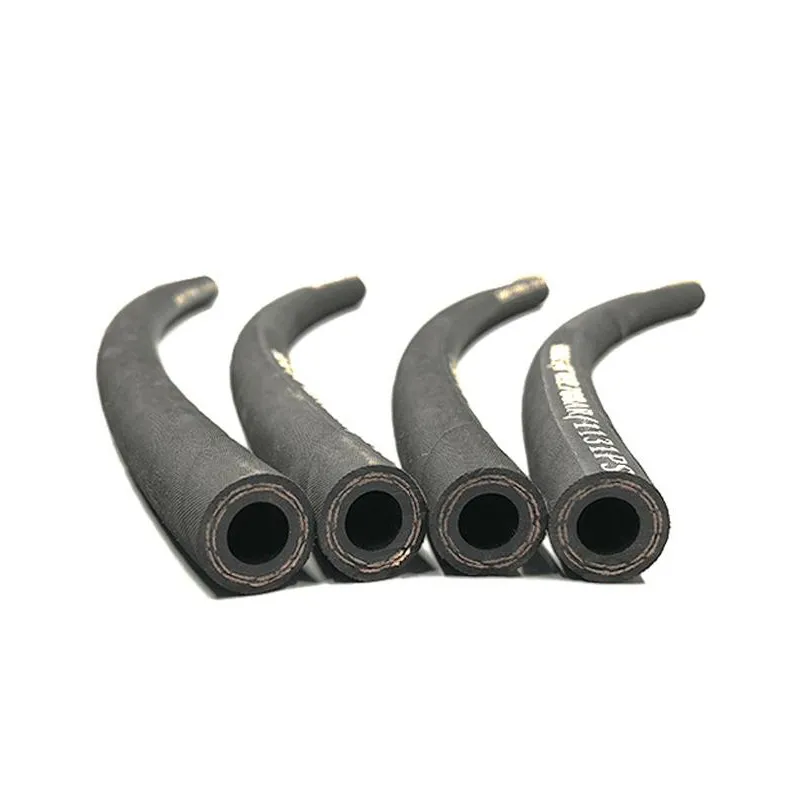

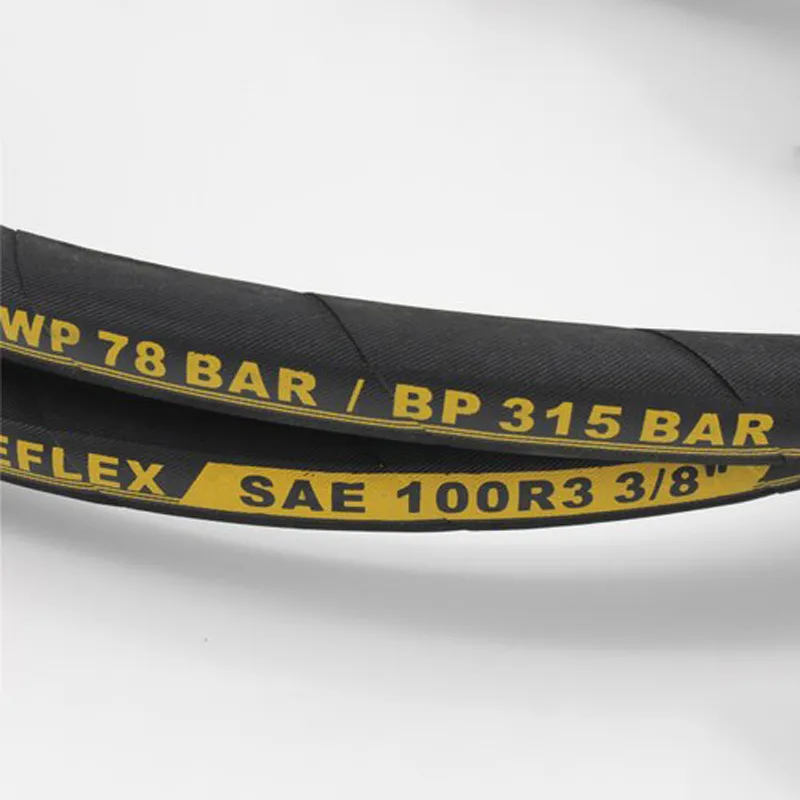

R3 Hydraulic Hose | Flexible, Oil-Resistant, SAE 100R3
If you spend any time around light-duty hydraulics, you’ll bump into the R3 Hydraulic Hose sooner or later. It’s the quiet workhorse in lubrication circuits, return lines, and low-pressure systems across agriculture and light construction. The batch coming out of CHANGAN DISTRICT, SHIJIAZHUANG, HEBEI, CHINA has been on my radar—partly because it’s priced sensibly, but also because field techs keep telling me it “just holds up” in muddy, real-world conditions.
To be honest, the spec looks familiar: it meets or exceeds SAE 100R3 (sometimes written 100R3AT), which is the textile-braid, low-pressure category. But implementation matters—rubber selection, braid density, and curing discipline can make or break longevity.
- Methods: tube extrusion → braid application (controlled pick count) → cover extrusion → vulcanization → cut/mark/coil.
- Testing: burst, proof, dimensional, adhesion, and ozone; impulse per ISO 6803 on sampled sizes.
- Service life: around 2–5 years in typical duty; real-world use may vary with routing, temperature, and fluid cleanliness.
- Low-pressure lubrication and air-oil lines in factories
- Agricultural sprayers and seeders (oil and some water-glycol fluids)
- Maintenance retrofits where flexibility and light weight matter
Many customers say a R3 Hydraulic Hose is easier to route behind panels than a wire-braid option, and I’d agree—tighter bends with less wrestling.
- Non-conductive versions for proximity to sensitive electronics (check spec)
- Pre-crimped assemblies with fittings; pressure testing with certificates
- Packaging: coils or reels; barcode/heat-shrink tagging
- Broad fluid compatibility (petroleum, some water-glycol—verify additive pack)
- Cost-effective versus wire-braid where pressure is modest
- Certifications available: ISO 9001 plant QA; material RoHS/REACH statements on request Final thought: if you need a dependable low-pressure line, a R3 Hydraulic Hose is often the pragmatic choice—nothing flashy, just the right construction for the job.
To be honest, the spec looks familiar: it meets or exceeds SAE 100R3 (sometimes written 100R3AT), which is the textile-braid, low-pressure category. But implementation matters—rubber selection, braid density, and curing discipline can make or break longevity.
Key Specifications (SAE R3)
| Tube | NBR (nitrile) for oil resistance |
| Reinforcement | Two textile braids (synthetic fiber) |
| Cover | SBR/CR, black, abrasion & weather resistant; MSHA option available |
| Temperature Range | ≈ -40°C to +100°C (oil), up to +70°C for water-based fluids |
| Working Pressure | ≈ 25–70 bar (360–1000 psi), size-dependent; 4:1 safety factor |
| Sizes | 3/16"–1" (most common), bend radii per SAE J517 |
| Standards | SAE J517 100R3; ISO 1436 Type R3; EN 854 R3 |
Manufacturing & QA (quick tour)
- Materials: oil-resistant NBR tube; high-tenacity textile yarn; weatherproof cover.- Methods: tube extrusion → braid application (controlled pick count) → cover extrusion → vulcanization → cut/mark/coil.
- Testing: burst, proof, dimensional, adhesion, and ozone; impulse per ISO 6803 on sampled sizes.
- Service life: around 2–5 years in typical duty; real-world use may vary with routing, temperature, and fluid cleanliness.
Where it shines
- Return and suction lines on compact excavators and skid steers- Low-pressure lubrication and air-oil lines in factories
- Agricultural sprayers and seeders (oil and some water-glycol fluids)
- Maintenance retrofits where flexibility and light weight matter
Many customers say a R3 Hydraulic Hose is easier to route behind panels than a wire-braid option, and I’d agree—tighter bends with less wrestling.
Vendor snapshot (what buyers compare)
| Vendor | Compliance | Lead Time | Customization | MOQ | Notes |
|---|---|---|---|---|---|
| ZSmartFlex (Hebei) | SAE 100R3, ISO 1436, EN 854 | ≈ 2–3 weeks | Color, branding, cut-to-length, assemblies | Around 500–1000 m | Solid QC traceability |
| Brand A (EU) | SAE/EN/ISO | 3–5 weeks | Limited colors; assemblies | 100–300 m | Premium price |
| Brand B (APAC) | SAE basic | 1–2 weeks | Standard only | 1000 m+ | Aggressive pricing |
Customization & options
- Private-label layline printing, colored covers, anti-abrasion wraps- Non-conductive versions for proximity to sensitive electronics (check spec)
- Pre-crimped assemblies with fittings; pressure testing with certificates
- Packaging: coils or reels; barcode/heat-shrink tagging
Field data and a quick case
In a parts distributor’s pilot, a R3 Hydraulic Hose replaced aging return lines on 18 loaders. After 9 months, leak incidents dropped to zero; lab pulls showed burst values averaging 4.6× WP, and impulse endurance ≥150,000 cycles at 100°C (ISO 6803 rig), size 1/2"—respectable for textile braid. Operators noted the hose stayed flexible in early-morning cold starts, which seems small but matters on uptime.Why pick it
- Lightweight, flexible, easy to route and clamp- Broad fluid compatibility (petroleum, some water-glycol—verify additive pack)
- Cost-effective versus wire-braid where pressure is modest
- Certifications available: ISO 9001 plant QA; material RoHS/REACH statements on request Final thought: if you need a dependable low-pressure line, a R3 Hydraulic Hose is often the pragmatic choice—nothing flashy, just the right construction for the job.
