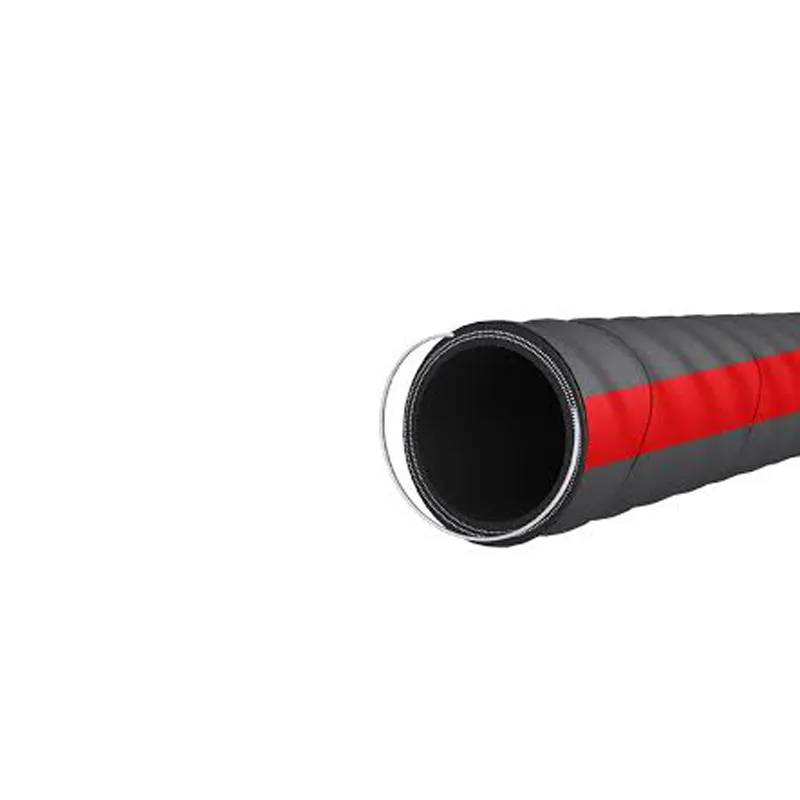

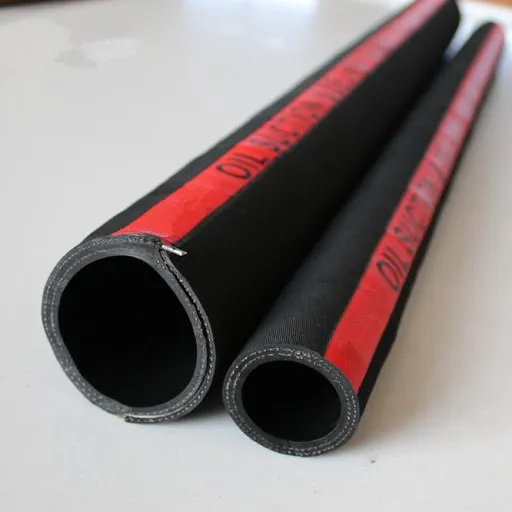

Understanding Hydraulic Hose sae 100 r4: A Technical Overview
The industrial landscape of fluid conveyance demands robust and reliable solutions, particularly in medium-pressure applications involving petroleum-based hydraulic fluids, water, air, and antifreeze solutions. The sae 100 r4 specification defines a crucial category of hydraulic hose engineered to meet these rigorous requirements. Distinguished by its textile-reinforced construction, sae 100 r4 hoses offer exceptional flexibility, durability, and resistance to environmental factors, making them indispensable across a multitude of heavy-duty industries. This comprehensive guide delves into the technical intricacies, application advantages, and market dynamics surrounding this vital component.
As B2B decision-makers and engineering professionals seek optimized performance and longevity for their systems, a thorough understanding of specifications like sae 100 r4 becomes paramount. This article provides an in-depth exploration, from manufacturing precision to real-world application efficacy, ensuring informed procurement and operational excellence.
Manufacturing Process of sae 100 r4 Hydraulic Hose
The production of a high-quality sae 100 r4 hose is a multi-stage, precision-controlled process, adhering to stringent industry standards like ISO 1436 and SAE J517. It emphasizes material integrity, dimensional accuracy, and robust construction to ensure superior performance and an extended service life.
1. Inner Tube Extrusion
The process begins with extruding the inner tube, typically made from an oil-resistant synthetic rubber compound such as Nitrile (NBR). This material is chosen for its excellent chemical compatibility with hydraulic fluids and its ability to withstand high temperatures and pressures. Precision extrusion ensures a smooth, uniform bore, critical for optimal fluid flow and minimal pressure drop.
2. Reinforcement Layer Application
Following the inner tube, one or more layers of textile braid reinforcement are applied. High-tensile synthetic fibers like polyester are braided or spiraled around the inner tube. This reinforcement provides the necessary strength to withstand the internal working pressures defined by the sae 100 r4 specification, while also contributing to the hose's flexibility. This process requires precise tension control to ensure uniform stress distribution.
3. Outer Cover Extrusion
An outer cover, typically made from weather and abrasion-resistant synthetic rubber (e.g., SBR or Neoprene blend), is then extruded over the reinforcement. This layer protects the internal components from external damage, ozone, UV radiation, and harsh operating environments. The cover formulation is critical for extending the service life of the sae 100 r4 hose.
4. Vulcanization and Curing
The assembled hose is then subjected to a vulcanization process, where it is heated under pressure. This chemical reaction cross-links the rubber polymers, giving the hose its final mechanical properties, elasticity, and set resistance. This curing process is vital for the hose's structural integrity and long-term performance.
5. Testing and Quality Control
Each batch undergoes rigorous testing to comply with SAE J517, ISO 1436, and other relevant standards. Tests include hydrostatic proof pressure, burst pressure, impulse testing (cyclic pressure variations), vacuum resistance, oil resistance, and ozone resistance. These tests ensure the hose meets or exceeds all performance parameters for a reliable sae100r4 product, guaranteeing a service life optimized for demanding industrial uses.
Industry Trends and Market Dynamics for sae 100 r4 Hoses
The market for hydraulic hoses, including sae 100 r4, is influenced by several macroeconomic and technological trends. Growth in construction, agriculture, and material handling sectors directly fuels demand. There's a growing emphasis on hoses with extended lifespan and enhanced chemical resistance, driven by the need to minimize downtime and reduce maintenance costs. Moreover, environmental regulations are pushing manufacturers towards more sustainable materials and energy-efficient production processes. The trend toward smart manufacturing and IoT integration also implies a future where hose performance can be monitored in real-time, predicting failures and optimizing maintenance schedules.
Technological advancements in polymer science are leading to new rubber compounds that offer superior abrasion resistance and flexibility without compromising pressure ratings. This evolution is particularly beneficial for sae 100 r4 hose applications where flexibility and durability are critical, such as in tight-fitting engine compartments or dynamic machinery. The global hydraulic hose market is projected to grow steadily, with an increasing demand for specialized hoses that can perform in extreme conditions, a segment where quality sae 100 r4 solutions excel.
Technical Specifications and Parameters of Hydraulic Hose sae 100 r4
The sae 100 r4 standard specifically addresses suction and return hose applications, signifying its suitability for lines operating under vacuum or low pressure. Its construction provides resilience against collapse and allows for high-volume fluid transfer.
Key Specifications Table: sae 100 r4 Hydraulic Hose
| Parameter | Description/Value |
|---|---|
| Standard | SAE J517 100R4, ISO 1436 |
| Tube Material | Oil-resistant synthetic rubber (e.g., Nitrile) |
| Reinforcement | Multiple plies of textile with a spiral wire to prevent collapse |
| Cover Material | Abrasion, ozone, and weather-resistant synthetic rubber (e.g., SBR/Neoprene) |
| Temperature Range | Typically -40°C to +100°C (-40°F to +212°F) |
| Working Pressure | Varies by diameter, typically 0.7 MPa (100 PSI) for larger sizes |
| Vacuum Rating | -0.08 MPa (-24 inHg) for specific sizes, prevents collapse under suction |
| Bend Radius | Flexible; values depend on hose ID, e.g., 200mm for 2" ID |
| Fluid Compatibility | Petroleum-based hydraulic fluids, water, air, antifreeze solutions |
The inclusion of a spiral wire in the reinforcement of the sae 100r4 hose is a critical design feature. Unlike pressure hoses that primarily resist outward force, suction and return lines must maintain their structural integrity under negative pressure to prevent collapse, which could disrupt fluid flow and damage pumps. This wire helix ensures the hose remains open even under severe vacuum conditions, providing reliable flow in suction applications.
Application Scenarios and Target Industries
The versatility and robust design of the sae 100 r4 hose make it ideal for a broad spectrum of industrial applications where medium-pressure return lines and suction lines are critical.
- Construction Equipment: Essential in excavators, bulldozers, and loaders for hydraulic return lines, ensuring smooth operation of cylinders and motors.
- Agriculture Machinery: Used in tractors, harvesters, and irrigation systems for suction lines from reservoirs and return lines to tanks, handling various agricultural fluids.
- Material Handling: Forklifts, cranes, and conveyor systems rely on sae100r4 hoses for their flexibility and resistance to collapse, facilitating efficient fluid transfer.
- Mining: In underground and surface mining equipment, these hoses handle fluid transfer in challenging environments, resisting abrasion and maintaining integrity under vacuum.
- Petrochemical and Energy: While not for high-pressure process lines, they serve in auxiliary hydraulic systems, lubrication circuits, and general utility lines in refineries and power plants, demonstrating corrosion resistance in typical application scenarios.
- Forestry: Logging equipment requires robust hoses for return lines due to the harsh operating conditions and frequent bending cycles.
The application in these demanding environments underscores the technical advantages of sae 100 r4, including its excellent flexibility, superior vacuum resistance, and robust outer cover designed to resist abrasion and environmental degradation. These features contribute to enhanced system reliability and reduced operational costs.
Technical Advantages and Performance Characteristics
The inherent design of the sae 100 r4 hose provides distinct technical advantages:
- Collapse Resistance: The integral wire helix reinforcement ensures the hose maintains its circular cross-section even under significant vacuum, preventing flow restrictions and pump cavitation. This is critical for reliable fluid suction and return.
- Superior Flexibility: Despite its robust construction, the textile reinforcement allows for excellent flexibility, simplifying installation in confined spaces and reducing strain on connections.
- Chemical and Abrasion Resistance: The specialized synthetic rubber compounds used for both the inner tube and outer cover offer high resistance to petroleum products, common industrial fluids, ozone, and external physical damage, extending the service life.
- Wide Temperature Range: Capable of performing reliably across a broad temperature spectrum, accommodating diverse operating environments from sub-zero conditions to high-heat hydraulic systems.
- Cost-Effectiveness: By reducing maintenance needs and extending replacement cycles, high-quality sae 100r4 hose contributes to significant operational cost savings over time.
These advantages position the sae 100 r4 as a superior choice for applications where dependable, high-flow, low-pressure fluid transfer is paramount. Its engineering addresses critical operational challenges, leading to enhanced system efficiency and longevity.
Vendor Comparison and Customization Solutions
When selecting a supplier for sae 100 r4 hoses, it is crucial to evaluate vendors beyond just price. Key considerations include adherence to international standards, manufacturing consistency, product certifications, and the ability to provide customized solutions.
Vendor Evaluation Criteria:
- Certifications: Look for ISO 9001, CE, and specific product certifications confirming compliance with SAE J517. ZsmartFlex Hoses, for instance, holds robust certifications ensuring product quality and traceability.
- Manufacturing Capabilities: Assess if the vendor utilizes advanced manufacturing techniques (e.g., automated braiding, precise extrusion) that ensure consistent quality across large volumes.
- Quality Control: Inquire about their testing protocols, including burst pressure, impulse testing, and material integrity checks.
- Technical Support and R&D: A strong vendor offers expert technical advice, assists in material selection, and invests in R&D to develop improved hose solutions.
- Customization Options: The ability to tailor hose length, end fittings, cover materials (for enhanced abrasion or chemical resistance), and branding is a significant advantage.
Customization for Specialized Needs:
While sae 100 r4 defines a standard, applications often have unique requirements. Customization can involve:
- Specific Lengths: Pre-cut lengths to reduce waste and assembly time.
- End Fittings: Integration of specific types of fittings (e.g., JIC, NPT, flange) to ensure seamless compatibility with existing systems.
- Protective Sleeves: Addition of fire-resistant, abrasion-resistant, or anti-static sleeves for enhanced protection in extreme environments.
- Color Coding: Custom colored covers for easy identification in complex hydraulic systems.
- Special Fluid Compatibility: Modifying the inner tube material for compatibility with unconventional hydraulic fluids or biofuels.
Engaging with a vendor like ZsmartFlex Hoses, who specializes in such tailored solutions, ensures that the sae 100 r4 hose performs optimally within its specific operational context, maximizing efficiency and minimizing potential system failures.
Application Case Studies: sae 100 r4 in Action
Case Study 1: Heavy Equipment Manufacturer
A leading manufacturer of heavy excavators faced issues with premature hose failure in their hydraulic return lines due to constant vibration and tight routing. After switching to a customized sae 100 r4 hose solution from ZsmartFlex, which featured an enhanced abrasion-resistant cover and optimized flexibility, they reported a 40% reduction in hose replacement frequency. This directly translated to significant savings in maintenance costs and reduced machine downtime. The superior collapse resistance ensured consistent fluid return, even during peak operational loads.
Case Study 2: Agricultural Irrigation System
An agricultural client operating large-scale irrigation systems required reliable suction hoses to draw water from various sources. Previous hoses experienced frequent kinking and collapse under vacuum, leading to pump cavitation and inefficient water transfer. Implementing sae 100r4 hose from our range, specifically designed for high-volume suction, completely eliminated these issues. The internal wire helix maintained the hose's integrity, ensuring uninterrupted flow and extending the lifespan of their pumps. Customer feedback highlighted the enhanced system reliability and significant energy saving benefits.
Case Study 3: Industrial Plant Hydraulic Power Unit
For a hydraulic power unit in a metallurgy plant, consistent fluid return and optimal heat dissipation were critical. The operating environment presented challenges of elevated temperatures and exposure to mild corrosive agents. Our sae 100 r4 hoses, with their broad temperature rating and robust outer cover, provided a durable solution. The improved flow characteristics contributed to more efficient system cooling and extended the life of the hydraulic oil, demonstrating superior performance in a high-demand, harsh environment.
Trustworthiness: FAQ, Lead Time, Warranty & Support
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of sae 100 r4 over other hydraulic hoses?
A: The main advantage is its superior resistance to collapse under vacuum, owing to its internal wire helix reinforcement, making it ideal for suction and low-pressure return lines where other hoses might kink or flatten.
Q: Can sae 100r4 hoses be used with synthetic hydraulic fluids?
A: Standard sae 100 r4 hoses are typically rated for petroleum-based fluids. For synthetic or specialized fluids, it is crucial to consult our technical team for specific material compatibility recommendations and potentially customized hose solutions.
Q: How does the service life of an sae 100 r4 hose compare to other SAE types?
A: With proper installation and within specified operating parameters, a well-manufactured sae 100 r4 hose can offer an extended service life comparable to, or even exceeding, other SAE types in its intended low-pressure/suction application due to its robust construction and collapse resistance.
Lead Time and Fulfillment
Our standard lead time for sae 100 r4 hoses typically ranges from 3-5 business weeks, depending on the order volume and specific customization requirements. For urgent requests or large-scale projects, we offer expedited production and delivery options. We maintain robust inventory levels of standard configurations to facilitate quicker turnaround times for common sizes. Please contact our sales team for precise lead time estimates tailored to your order.
Warranty Commitments
All our sae 100 r4 hydraulic hoses are backed by a comprehensive 24-month warranty from the date of purchase, covering manufacturing defects and material failures under normal operating conditions. This commitment reflects our confidence in the quality and durability of our products, ensuring peace of mind for our clients.
Customer Support Information
Our dedicated technical support team is available to assist with product selection, installation guidance, troubleshooting, and custom solution development. You can reach us via phone at +86-XXX-XXXX-XXXX or email at support@zsmartflexhose.com. We pride ourselves on responsive and knowledgeable service, ensuring our clients receive the expert assistance they need for optimal system performance.
Conclusion
The sae 100 r4 hydraulic hose stands as a testament to engineering precision and material science, offering an indispensable solution for medium-pressure hydraulic return and suction lines across diverse heavy industries. Its unique construction, featuring textile reinforcement and a crucial spiral wire, guarantees exceptional resistance to collapse, flexibility, and longevity in demanding operational environments. For B2B stakeholders, investing in high-quality sae 100r4 hose translates directly into enhanced system reliability, reduced maintenance overheads, and improved overall operational efficiency. Partnering with a reputable manufacturer that upholds stringent quality standards and offers tailored solutions is paramount to leveraging the full potential of this critical fluid conveyance component.
References
- SAE J517: Hydraulic Hose. Society of Automotive Engineers.
- ISO 1436: Rubber hoses and hose assemblies — Wire-braid-reinforced hydraulic types — Specification. International Organization for Standardization.
- Parker Hannifin Corp. (2023). "Hydraulic Hose and Fittings Catalog."
- Gates Corporation. (2022). "Industrial Hose Product Manual."
- Fluid Power Journal. (Various Issues). "Advances in Hose Technology."
