A Field-Tested Buyer’s Guide to hydraulic fittings for sale
If you wrench on machines for a living—or you run a plant where downtime burns money—you already know: fittings make or break the system. I’ve walked quarry yards at dawn and seen a $5 fitting sideline a $500k loader. Not fun. Below is the practical rundown I wish more catalogs wrote, focused on SmartFlex Hydraulic Hose Fittings from CHANGAN DISTRICT, SHIJIAZHUANG, HEBEI, CHINA.
Industry snapshot (what’s trending)
- More zinc-nickel plating (aiming at 720–1000 h NSS) as fleets push for longer salt-road cycles.
- ORFS and metric heavy adoption in new OEM platforms; legacy JIC/BSPP still everywhere.
- Impulse-tested assemblies becoming the new baseline for high duty cycles (mining, injection molding, steel mills).
What the product actually is

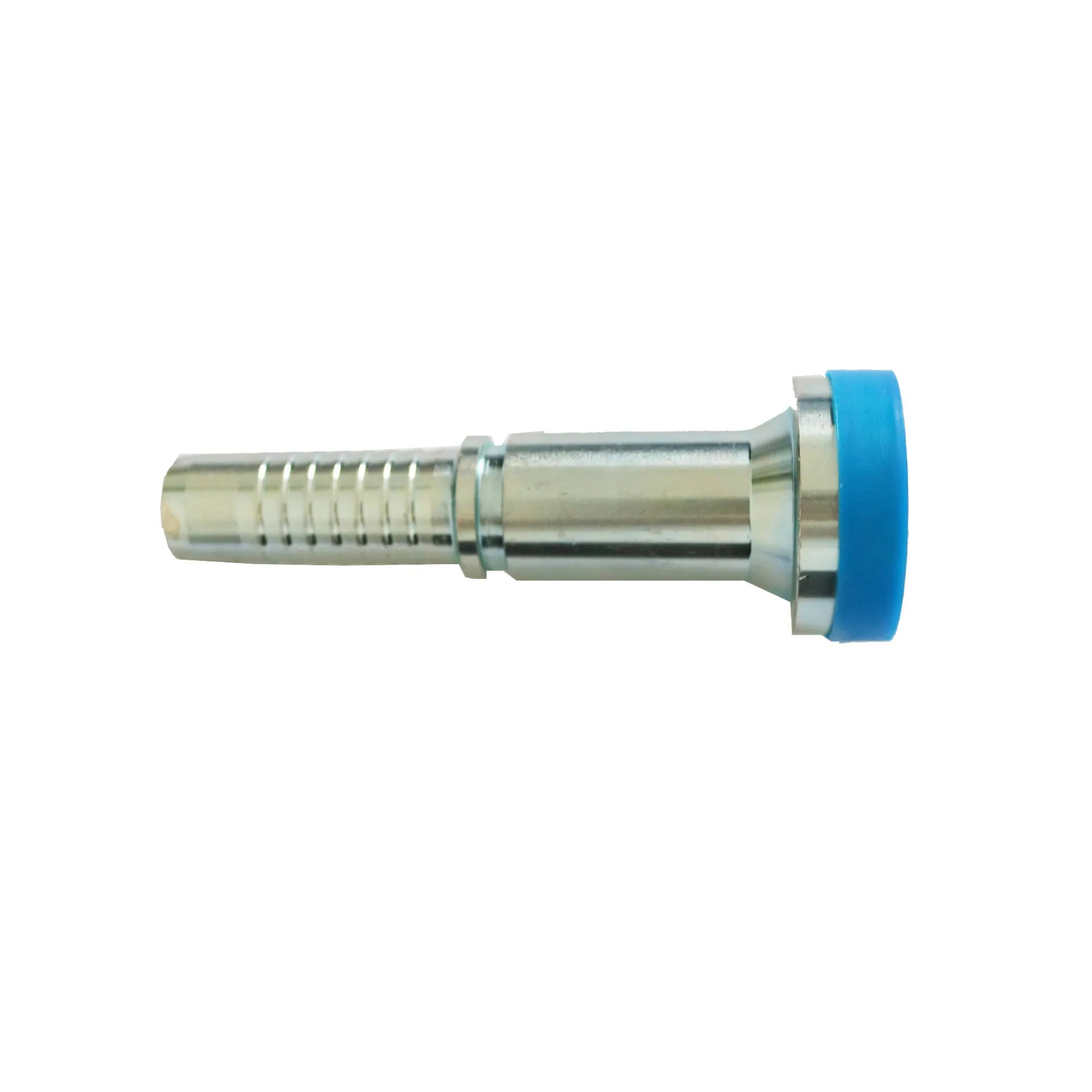

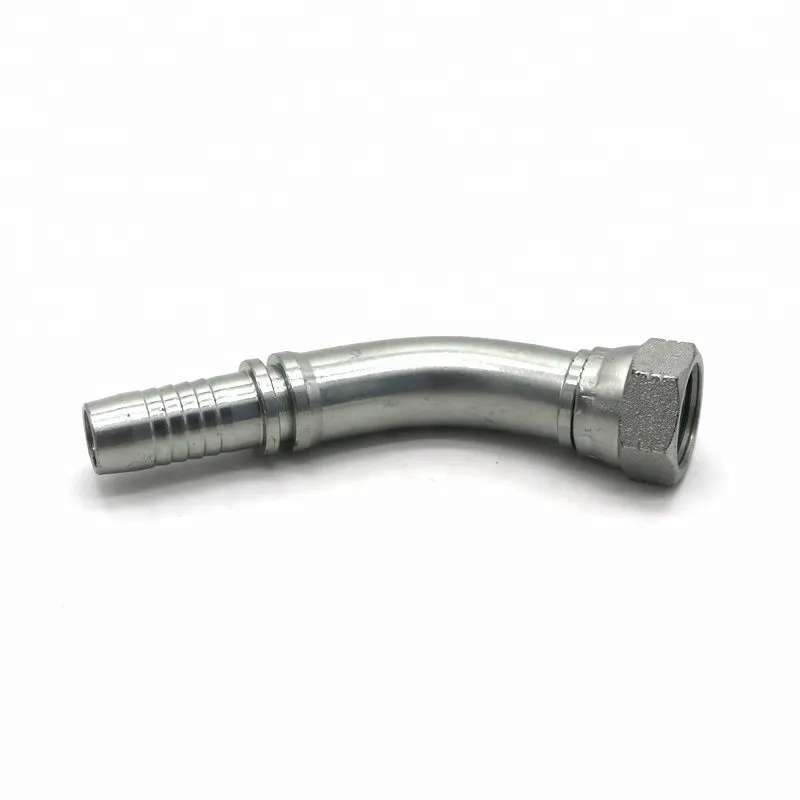

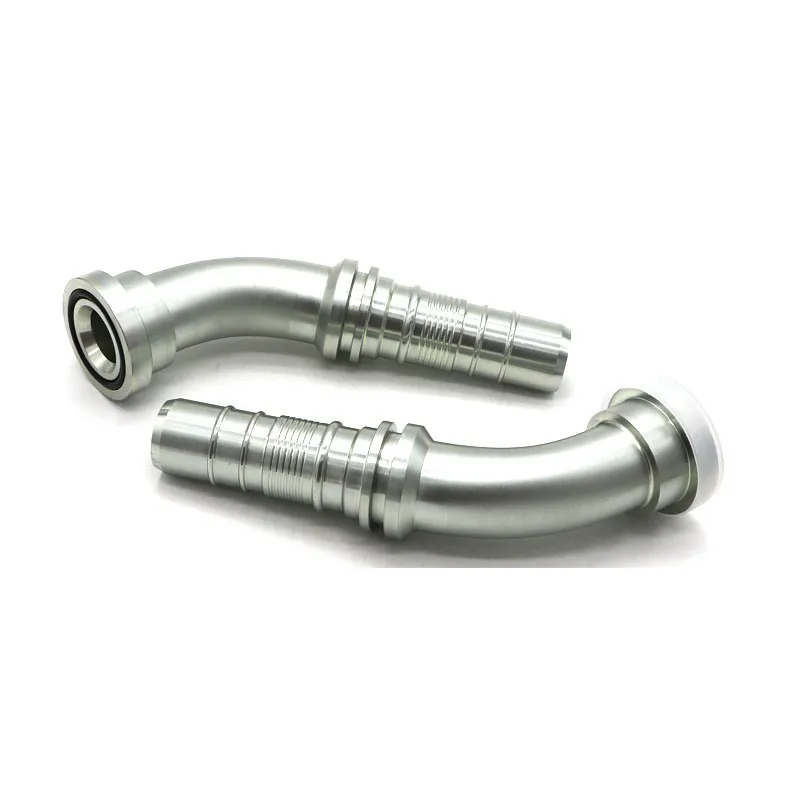

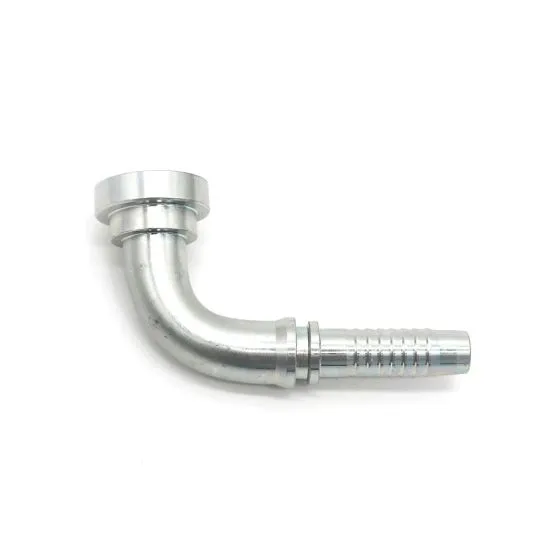

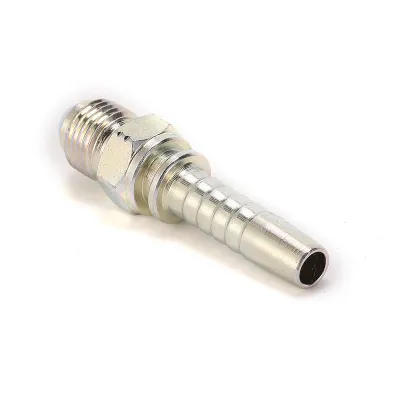

Product name: Hydraulic Hose Fittings. High-pressure crimp types in JIC, BSP/BSPT, NPT, Metric, ORFS, SAE. In real-world use, these pair with matched ferrules and hoses to deliver leak-tight connections from -40°C to ~120°C (nitrile seals; wider with FKM). Many customers say the crimp consistency is the quiet hero here—less rework, fewer call-backs.
| Spec | Details (≈, real-world may vary) |
|---|---|
| Threads/Ends | JIC (SAE J514), ORFS (SAE J1453), BSPP/BSPT (ISO 228/ISO 7-1), NPT (ASME B1.20.1), Metric (ISO 6149/ISO 8434) |
| Material | Carbon steel (C45/20#), stainless 304/316 optional |
| Surface | Zn-Ni plating, ≈720 h salt spray (ASTM B117/ISO 9227) |
| Pressure classes | Matches hose series (1SN/2SN/4SP/4SH/R12). Burst typically ≥4× WP; impulse to ISO 6803 profiles |
| Sizes | DN06–DN51 (¼″–2″) common, larger on request |
Process flow and testing
Bar-stock or forged blanks → CNC turning → thread rolling/cutting → deburr → heat treat (where specified) → crimp ferrule pairing → Zn-Ni plating → 100% visual + thread GO/NO-GO → pressure proof. Standards referenced include SAE J516/ISO 12151 for hose fittings, with functional tests per ISO 19879 and impulse per ISO 6803. Service life? Honestly depends on media, cycles, and corrosion; shops report 3–10 years in mixed fleets.
Where they’re used (and why)
- Mobile hydraulics: excavators, loaders, forestry harvesters.
- Factory lines: presses, injection molding, test stands.
- Harsh duty: mining, marine deck gear, steel mills.
Advantages people flag: clean threads, predictable crimp OD, and fewer micro-leaks on ORFS faces. I guess it’s the boring stuff that saves the week.
Vendor comparison (quick take)
| Vendor | Plating | Certs | Lead Time | Customization |
|---|---|---|---|---|
| SmartFlex (Hebei) | Zn-Ni ≈720 h NSS | ISO 9001; PPAP on request | 10–20 days typical | Non-std. threads, logos, kits |
| Generic Import A | Zinc ≈96–240 h | Basic QC | 15–30 days | Limited |
| EU Brand B | Zn-Ni 720–1000 h | ISO/CE, audited | Stock/fast ship | Extensive |
Customization and kits
Custom seat angles, unusual BSPT taper tolerances, private-label laser marks, and pre-crimped assemblies—those are on the menu. Also handy: pre-sorted service kits for field techs. It seems that buyers love the “no more missing adaptor” peace of mind.
Case notes from the field
A Midwest aggregate plant swapped legacy JIC fittings for ORFS on high-vibration conveyors. After matching hoses and proper crimp ferrules, leak incidents dropped ≈62% over six months (maintenance log, informal). Another customer—an injection molding shop—reported fewer re-torques during 24/7 runs. Not scientific, sure, but consistent with what the standards predict.
If you’re scanning for hydraulic fittings for sale that strike a balance between spec compliance and sane lead times, these are worth a look—especially if you need JIC/ORFS mixes on the same line.
Certifications and compliance
Factory quality system: ISO 9001. Dimensional controls with calibrated GO/NO-GO gages; plating validated to ASTM B117/ISO 9227; hose assembly performance tested against ISO 12151, SAE J516, and impulse profiles of ISO 6803. Documentation packs (CoC, material certs, pressure test sheets) available on request.
- SAE J516 – Hydraulic Hose Fittings (SAE International).
- ISO 12151 – Connections for hydraulic fluid power and general use — Hose fittings.
- ISO 19879 – Metallic tube fittings — Test methods for hydraulic applications.
- ASTM B117 / ISO 9227 – Salt Spray (Fog) Testing for coatings.
- ISO 6803 – Rubber or plastics hoses — Hydraulic impulse testing.
